PIPE CLAMPS
100 & 200 SERIES HYDRA-ZORB
Product Description

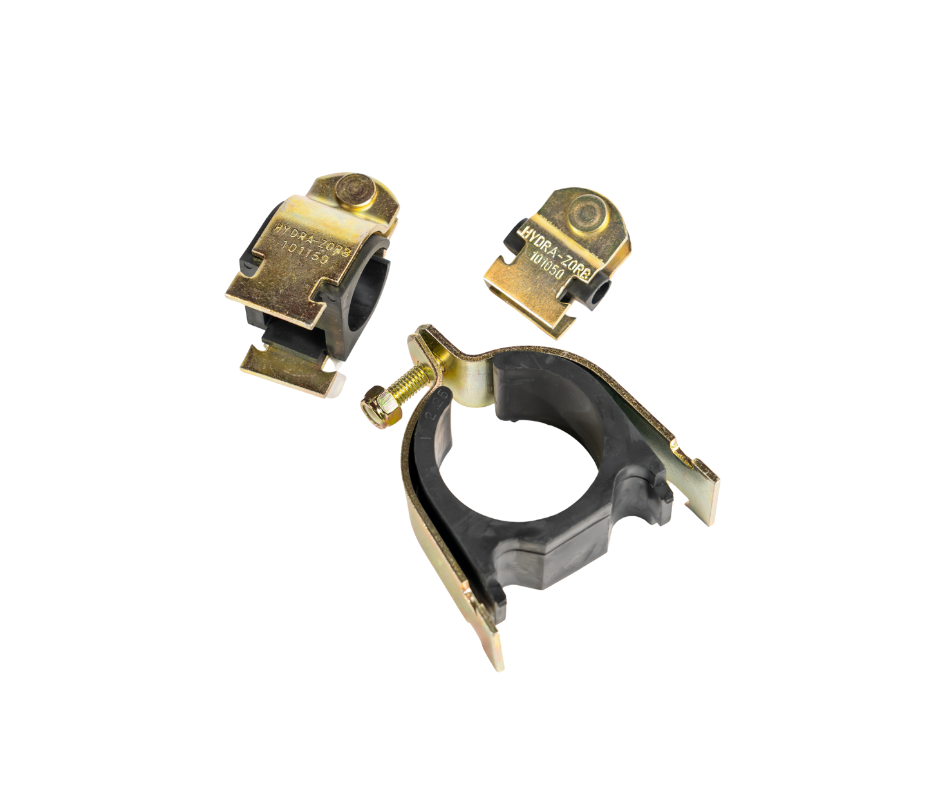

Hydra-Zorb Cushion Clamps are the original cushioned strut clamp. These clamps are typically used in plumbing, hydraulic, pneumatic, and HVAC applications where damage from pipe movement is a concern.
Hydra-Zorb Cushion Clamps secure insulated tube and pipe runs against damage from shock, movement and vibration, eliminating metal to metal contact. The cushion material is thermoplastic elastomer, which is rated from -65 degrees to +275 degrees fahrenheit.
.png?width=940&height=788&name=HydraZorb%201%20(1).png)
Learn More
Additional Product Information
- 100 SERIES
- 200 SERIES
100 SERIES
| PART NUMBER | SIZE |
| 100025 | 1/4" |
| 100031 | 5/16" |
| 100037 | 3/8" |
| 100047 | 0.47" |
| 100050 | 1/2" |
| 100062 | 5/8" |
| 100075 | 3/4" |
| 100087 | 7/8" |
| 100100 | 1" |
| 100112 | 1 1/8" |
| 100125 | 1 1/4" |
| 100137 | 1 3/8" |
| 100150 | 1 1/2" |
| 100162 | 1 5/8" |
| 100175 | 1 3/4" |
| 100187 | 1 7/8" |
| 100200 | 2" |
| 100121 | 2 1/8" |
| 100225 | 2 1/4" |
| 100237 | 2 3/8" |
| 100251 | 2 1/2" |
| 100262 | 2 5/8" |
| 10300 | 3" |
| 100312 | 3 1/8" |
| 100362 | 3 5/8" |
| 100400 | 4" |
| 100412 | 4 1/8" |
| 100425 | 4 1/4" |
| 100437 | 4 3/8" |
| 100462 | 4 5/8" |
| 100500 | 5" |
| 100512 | 5 1/8" |
| 100600 | 6" |
| 100612 | 6 1/8" |
| 100637 | 6 3/8" |
| 100650 | 6 1/2" |
Available Finishes:
Mild Steel, Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), Aluminum
200 SERIES
| PART NUMBER | SIZE |
| 200025 | 1/4" |
| 200037 | 3/8" |
| 200050 | 1/2" |
| 200075 | 3/4" |
| 200100 | 1" |
| 200125 | 1 1/4" |
| 200150 | 1 1/2" |
| 200200 | 2" |
| 200250 | 2 1/2" |
| 200300 | 3" |
| 200350 | 3 1/2" |
| 200400 | 4" |
| 200500 | 5" |
| 200600 | 6" |
Available Finishes: Mild Steel, Stainless Steel 304 (SS4), Stainless Steel 306 (SS6), Aluminum (AL)
