Beam Clamps

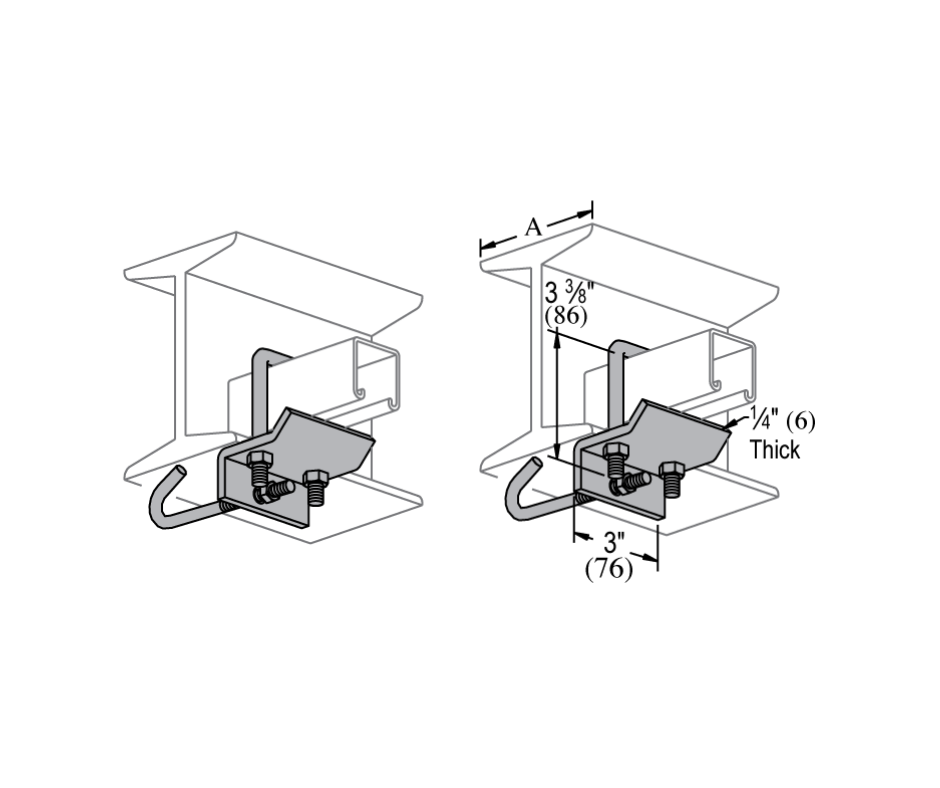

2656 I-Beam Clamp with U-Bolt
Product Description
The 2656 I-Beam Clamp with U-Bolt is expertly engineered to effortlessly secure strut channels to the underside of beams.
- Available Finishes include Electro Galvanized (EG) and Hot Dipped Galvanized (HD)
- More information on the I-Beam Clamp with U-Bolt below
- Includes plate, J-Bolt, U-Bolt and 3 hex nuts
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | J-Bolt Length | U-Bolt | Flange Width | Channel Depth |
| 2656T1 | 3 3/8" | 3"-6" | 13/16" - 1 5/8" | |
| 2656T1 | 9" | 3 3/8" | 6"-8" | 13/16" - 1 5/8" |
| 2656T1 | 13" | 3 3/8" | 8"-12" | 13/16" - 1 5/8" |
| 2656T2 | 7" | 5" | 3"-6" | 1 5/8" - 3 1/4" |
| 2656T2 | 9" | 5" | 6"-8" | 1 5/8" - 3 1/4" |
| 2656T2 | 13" | 5" | 8"-12" | 1 5/8" - 3 1/4" |
| 2656T3 | 7" | 8 1/2" | 3"-6" | 4 7/8" - 6 1/2" |
| 2656T3 | 9" | 8 1/2" | 6"-8" | 4 7/8" - 6 1/2" |
| 2656T3 | 13" | 8 1/2" | 8"-12" | 4 7/8" - 6 1/2" |
| 2656T4 | 7" | 6 3/4" | 3"-6" | 3 1/4" - 4 7/8" |
| 2656T4 | 9" | 6 3/4" | 6"-8" | 3 1/4" - 4 7/8" |
| 2656T4 | 13" | 6 3/4" | 8"-12" | 3 1/4" - 4 7/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
