Beam Clamps

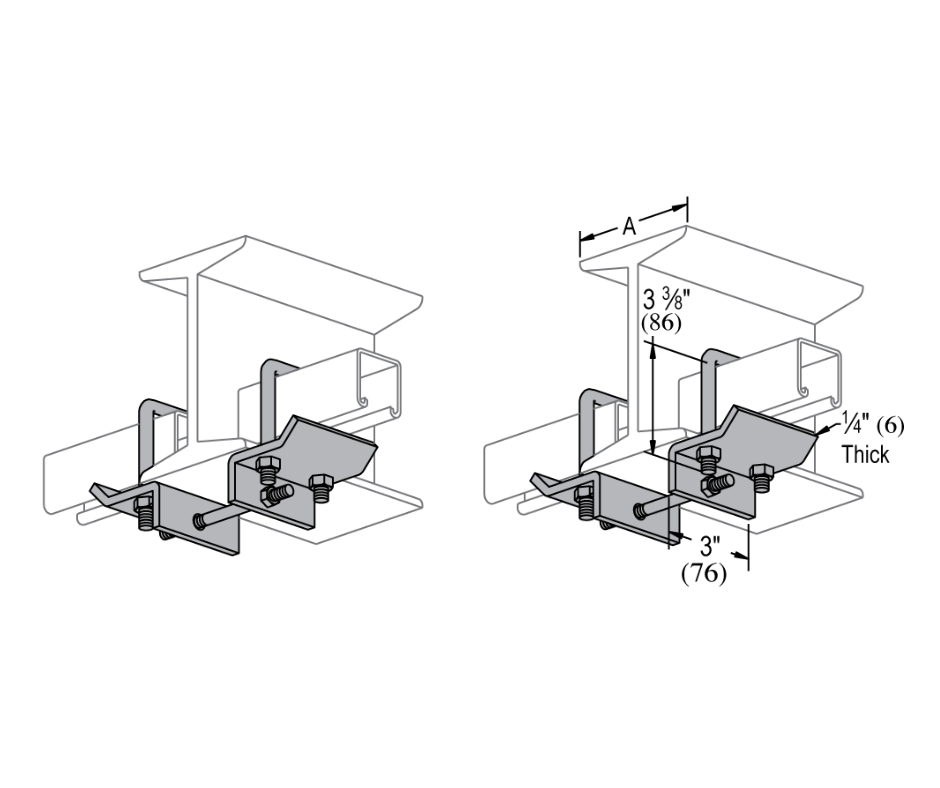

2657 Double I-Beam Clamp
Product Description
The 2657 Double I-Beam Clamp is crafted to accommodate piping, conduit, or tubing. This clamp comes complete with two plates, a threaded rod stud, two u-bolts, and six hex nuts, providing everything you need for a secure and efficient installation.
- Available Finishes include Electro Galvanized (EG) and Hot Dipped Galvanized (HD)
- More information on the Double I-Beam Clamp below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
- Competitor SKUS
Details
| Part No | Stud Length | U-Bolt | Flange Width | Channel Depth |
| 2657T1 | 6" | 3 3/8" | 4" - 6" | 13/16" - 1 5/8" |
| 2657T1 | 12" | 3 3/8" | 6" - 12" | 13/16" - 1 5/8" |
| 2657T2 | 6" | 5" | 4" - 6" | 1 5/8" - 3 1/4" |
| 2657T2 | 12" | 5" | 6" - 12" | 1 5/8" - 3 1/4" |
| 2657T3 | 6" | 8 1/2" | 4" - 6" | 4 7/8" - 6 1/2" |
| 2657T3 | 12" | 8 1/2" | 6" - 12" | 4 7/8" - 6 1/2" |
| 2657T4 | 6" | 6 3/4" | 4" - 6" | 3 1/4" - 4 7/8" |
| 2657T4 | 12" | 6 3/4" | 6" - 12" | 3 1/4" - 4 7/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Competitor SKUS
PS2657
