Beam Clamps

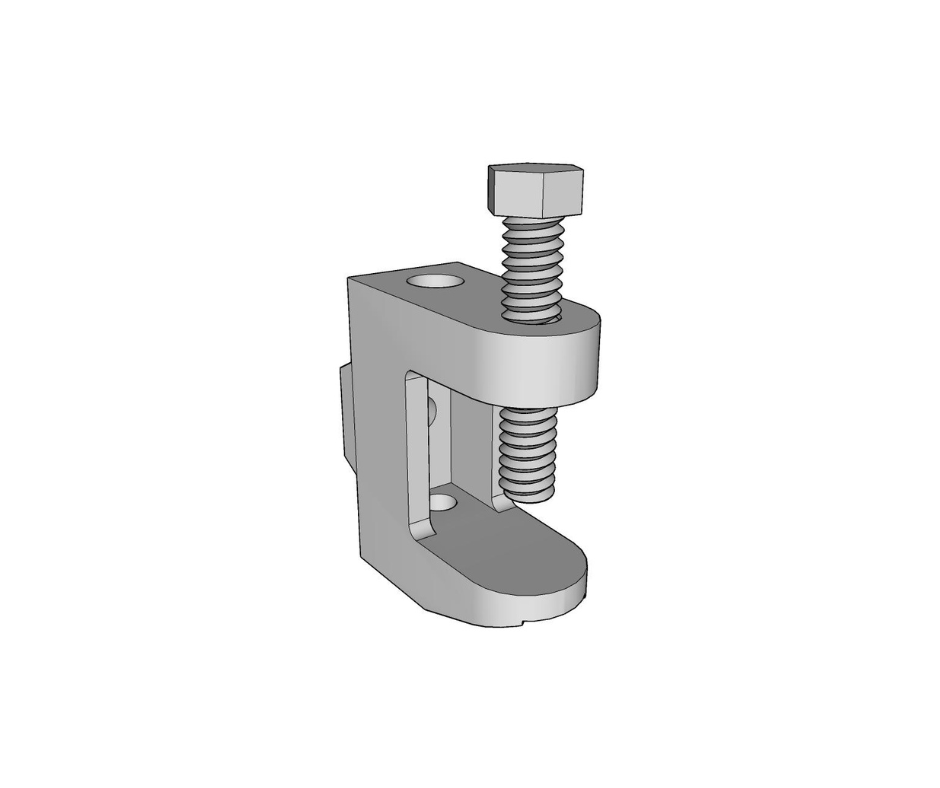

Top Beam Clamp
Product Description
The Top Beam Clamp is specially designed to securely fasten 1 - 5/8" wide channels or threaded rods onto beams or supports, providing a reliable solution for running piping, conduit, or tubing. PUPCO offers a wide range of finishes and materials that are perfectly tailored to meet the requirements of your next project.
- Available Finishes include Electro Galvanized (EG)
- Available Materials include Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), and Plain Steel (BK)
- Additional styles are available
- FIG60, FIG61, FIG62
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | Style | Rod Size | Throat Opening |
| 6014 | Regular | 1/4" | 5/16" |
| 6138 | Regular | 3/8" | 1 1/4" |
| 6112 | Regular | 1/2" | 1 1/4" |
| 6158 | Regular | 5/8" | 1 1/4" |
| 6134 | Regular | 3/4" | 1 1/4" |
| 6238 | Junior | 3/8" | 5/8" |
| 6212 | Junior | 1/2" | 5/8" |
| 6258 | Junior | 5/8" | 5/8" |
| 6234 | Junior | 3/4" | 5/8" |
| 6278 | Junior | 7/8" | 5/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Plain Steel (BK)
