CABLE TRAYS

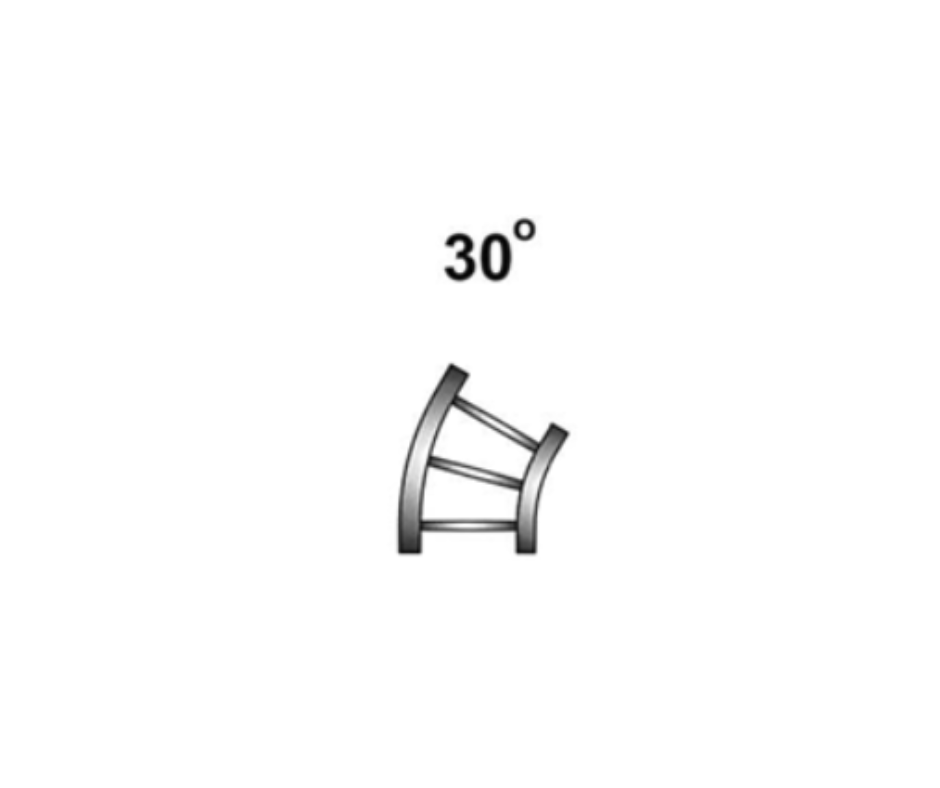

30° Horizontal Elbow

Product Description

The 30° Horizontal Elbow is an ideal choice for installations where large diameter cables are involved in long span situations. It effectively reduces the overall tray width and provides a seamless transition between straight sections and fittings.

All fittings have 3" tangents at the end of curved side rails
All elbows are supplied with one pair of standard splice plates with hardware at no charge
Contact your sales representative for availability

Get a Quote Request Cut Sheet

Learn More

Additional Product Information

Class 1:

Designed for use with NEMA Classes 12B and 12C cable trays. These systems have 1 1/8" wide side rail flanges and 4-hole splice plates.

Class 2:

Designed for use with NEMA Classes 20A, 20B and 20C cable trays. These systems have 2" wide side rail flanges and 4-hole splice plates.

Class 3:

Designed for use with NEMA Classes that exceed 20C. These systems have 2 3/8" wide side rail flanges and 8-hole splice plates.
