CABLE TRAYS

45° Horizontal Elbow

Product Description

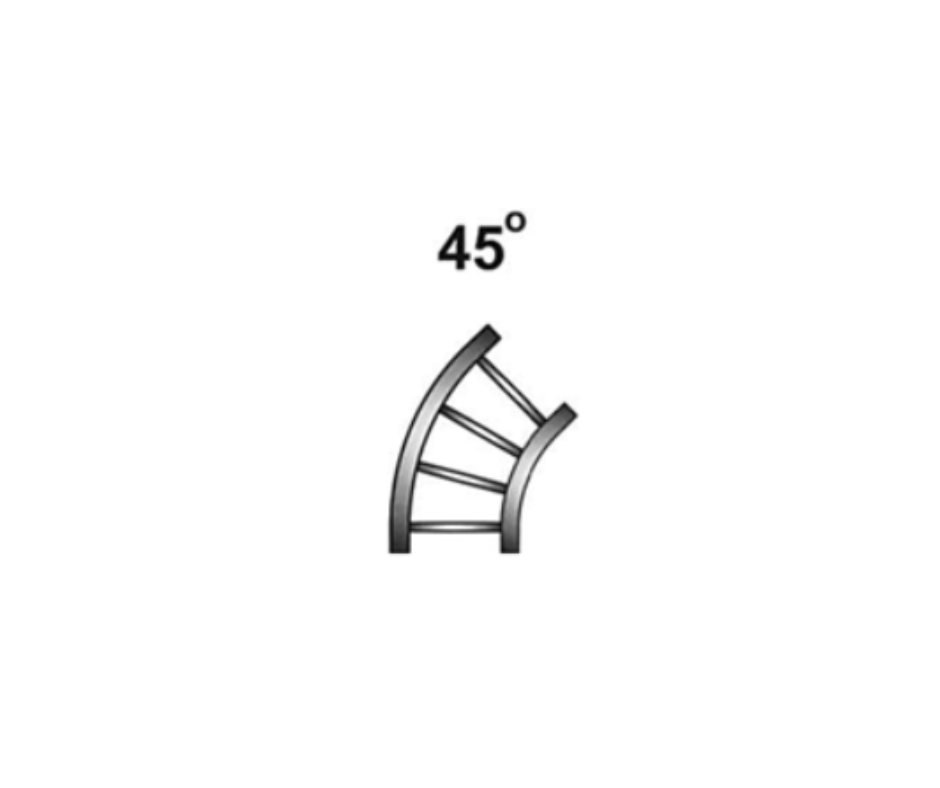

The 45° Horizontal Elbow boasts a horizontal bend that grants the flexibility for a 45° cable tray to navigate left or right. Moreover, this design ensures a secure cable support platform during cable tray transitions.

All fittings have 3" tangents at the end of curved side rails
All elbows are supplied with one pair of standard splice plates with hardware at no charge
Contact your sales representative for availability

Get a Quote Request Cut Sheet

Learn More

Additional Product Information

Class 1:

Designed for use with NEMA Classes 12B and 12C cable trays. These systems have 1 1/8" wide side rail flanges and 4-hole splice plates.

Class 2:

Designed for use with NEMA Classes 20A, 20B and 20C cable trays. These systems have 2" wide side rail flanges and 4-hole splice plates.

Class 3:

Designed for use with NEMA Classes that exceed 20C. These systems have 2 3/8" wide side rail flanges and 8-hole splice plates.
