CABLE TRAYS

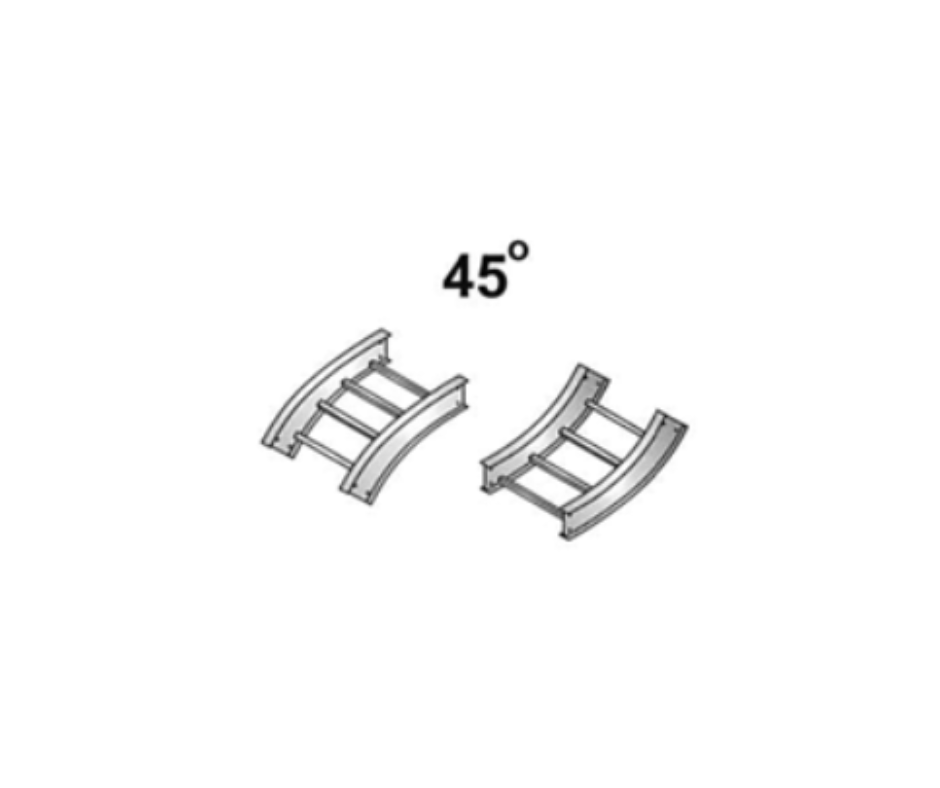

45° Vertical Elbow

Product Description

The 45° Vertical Elbow is the perfect solution for installations that require the use of large diameter cables in long span situations. This elbow effectively narrows the tray width while seamlessly connecting straight sections and fittings for a flawless transition.

All fittings have 3" tangents at the end of curved side rails
All elbows are supplied with one pair of standard splice plates with hardware at no charge
Inside & Outside trays available
Contact your sales representative for availability

Get a Quote Request Cut Sheet

Learn More

Additional Product Information

Class 1:

Designed for use with NEMA Classes 12B and 12C cable trays. These systems have 1 1/8" wide side rail flanges and 4-hole splice plates.

Class 2:

Designed for use with NEMA Classes 20A, 20B and 20C cable trays. These systems have 2" wide side rail flanges and 4-hole splice plates.

Class 3:

Designed for use with NEMA Classes that exceed 20C. These systems have 2 3/8" wide side rail flanges and 8-hole splice plates.
