CABLE TRAYS

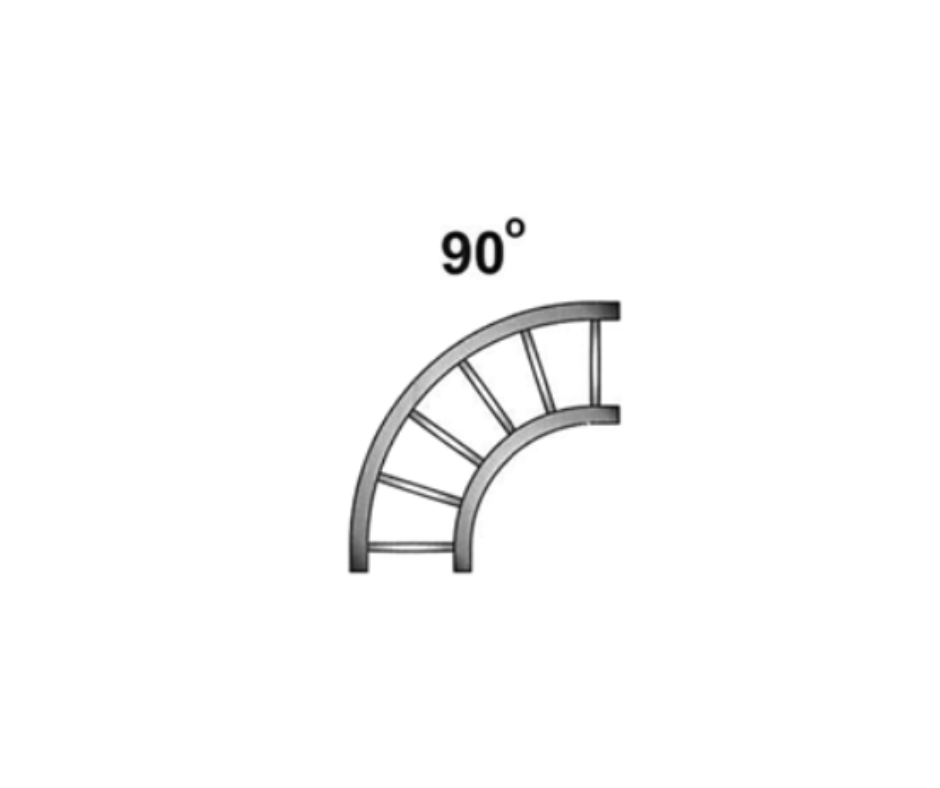

90° Horizontal Elbow

Product Description
The 90° Horizontal Elbow provides essential support and enables seamless cable management throughout your cable routing system.
  • All fittings have 3" tangents at the end of curved side rails
  • All elbows are supplied with one pair of standard splice plates with hardware at no charge
  • Standard 12", 24" and 36" radius are available for all fittings.
  • Contact your sales representative for custom designs

Learn More

Additional Product Information

Class 1:

Designed for use with NEMA Classes 12B and 12C cable trays. These systems have 1 1/8" wide side rail flanges and 4-hole splice plates.

Class 2:

Designed for use with NEMA Classes 20A, 20B and 20C cable trays. These systems have 2" wide side rail flanges and 4-hole splice plates.

Class 3:

Designed for use with NEMA Classes that exceed 20C. These systems have 2 3/8" wide side rail flanges and 8-hole splice plates.
