Horizontal Cross

Product Description

Horizontal Crosses are the perfect solution for connecting four straight channel sections or other transitional fittings, forming a four-way intersection with two exits in any fiber routing system.

All fittings have 3" tangents at the end of curved side rails
All elbows are supplied with one pair of standard splice plates with hardware at no charge
Standard 12", 24" and 36" radius are available for all fittings.

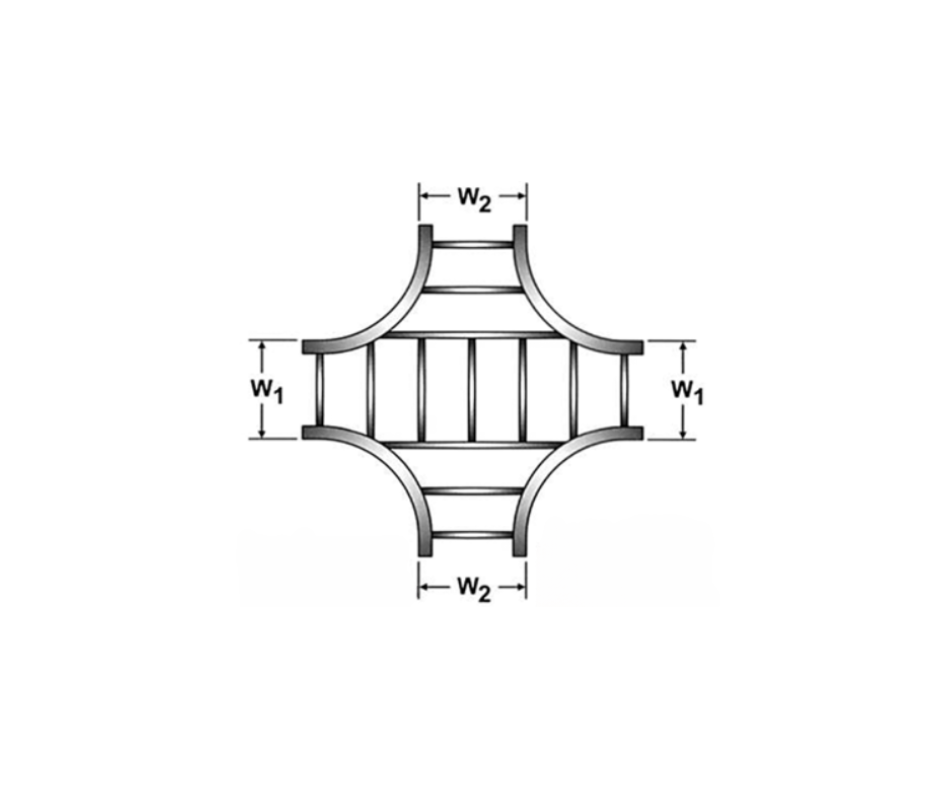

Standard Cross: W1 = W2. Item code: HC
Reducing Cross: W1>W2. Item code: HCR
Contact your sales representative for custom designs

Get a Quote Request Cut Sheet

Learn More

Additional Product Information

Class 1:

Designed for use with NEMA Classes 12B and 12C cable trays. These systems have 1 1/8" wide side rail flanges and 4-hole splice plates.

Class 2:

Designed for use with NEMA Classes 20A, 20B and 20C cable trays. These systems have 2" wide side rail flanges and 4-hole splice plates.

Class 3:

Designed for use with NEMA Classes that exceed 20C. These systems have 2 3/8" wide side rail flanges and 8-hole splice plates.
