CABLE TRAYS

Horizontal Tee

Product Description

Horizontal Tees link three 10" straight channel sections or compatible transitional fittings, enabling the creation of a sleek and efficient horizontal branch within a fiber routing system.

All fittings have 3" tangents at the end of curved side rails
Tees are supplied with two pairs of standard splice plates with hardware at no charge

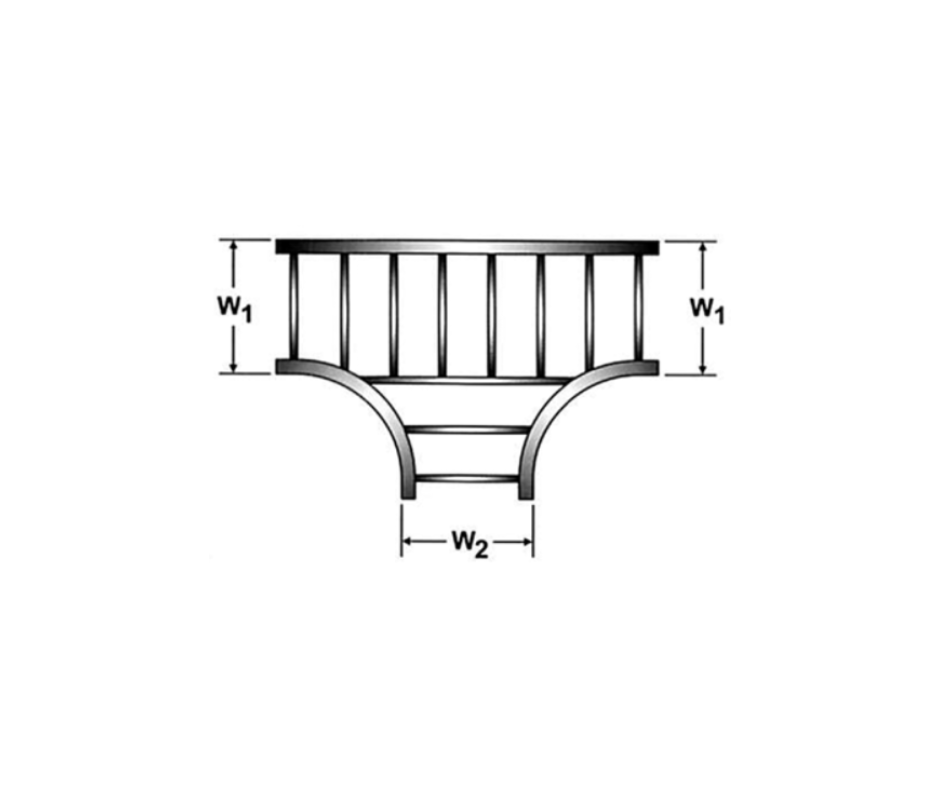

Standard Tee: W1 = W2. Item code: HT
Reducing Tee: W1>W2. Item code: HTR
Expanding Tee: W1 < W2. Item code: HTE
Contact your sales representative for custom designs

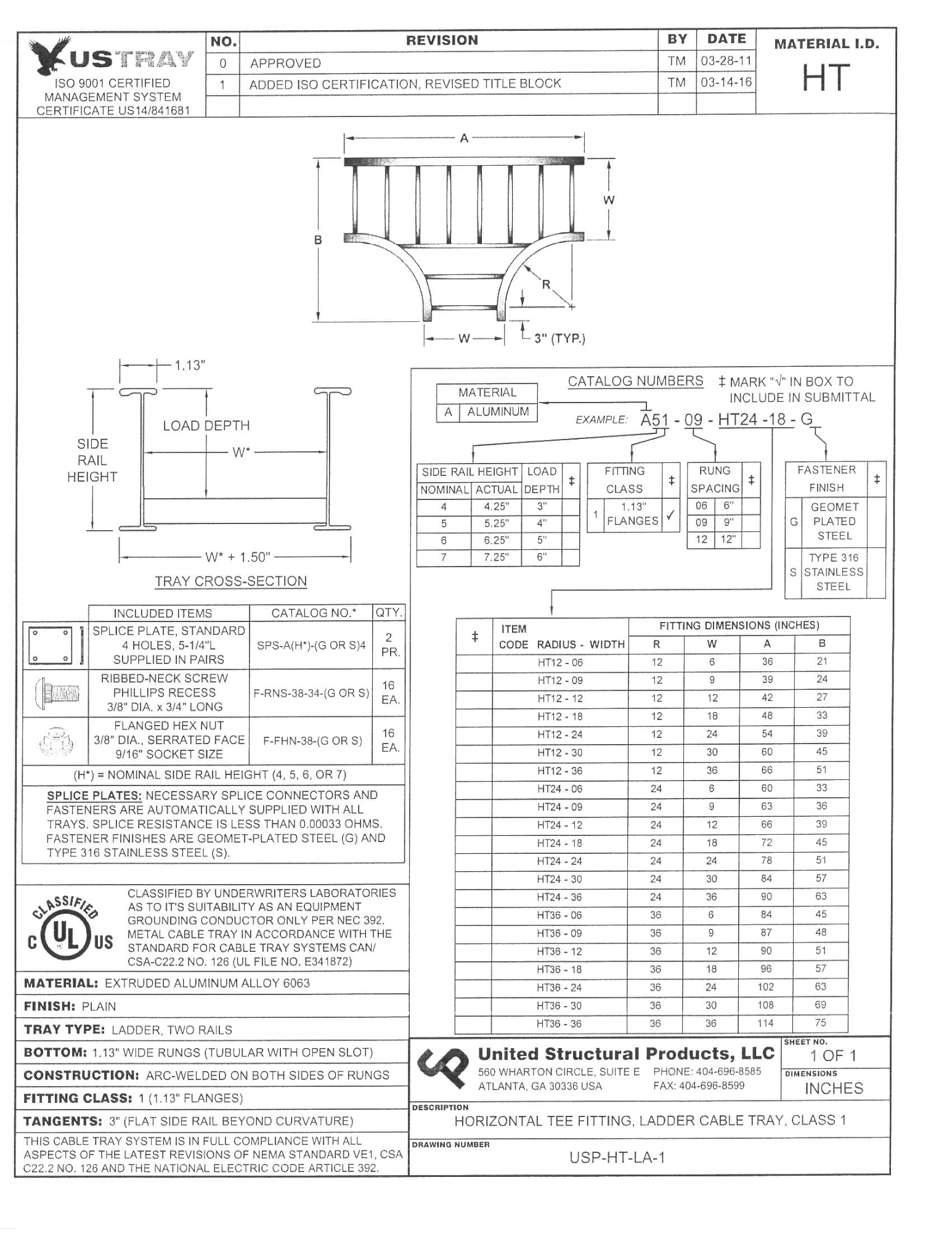

Get a Quote Download Cut Sheet

Learn More

Additional Product Information

Class 1:

Designed for use with NEMA Classes 12B and 12C cable trays. These systems have 1 1/8" wide side rail flanges and 4-hole splice plates.

Class 2:

Designed for use with NEMA Classes 20A, 20B and 20C cable trays. These systems have 2" wide side rail flanges and 4-hole splice plates.

Class 3:

Designed for use with NEMA Classes that exceed 20C. These systems have 2 3/8" wide side rail flanges and 8-hole splice plates.
