CABLE TRAYS

Reducers

Product Description

Cable Tray Reducers are offered for cable tray systems of varying capacities, ranging from light to heavy duty. These reducers effectively decrease the width of the flat surface, providing a streamlined solution for your cable management needs.

All fittings have 3" tangents at the end of curved side rails

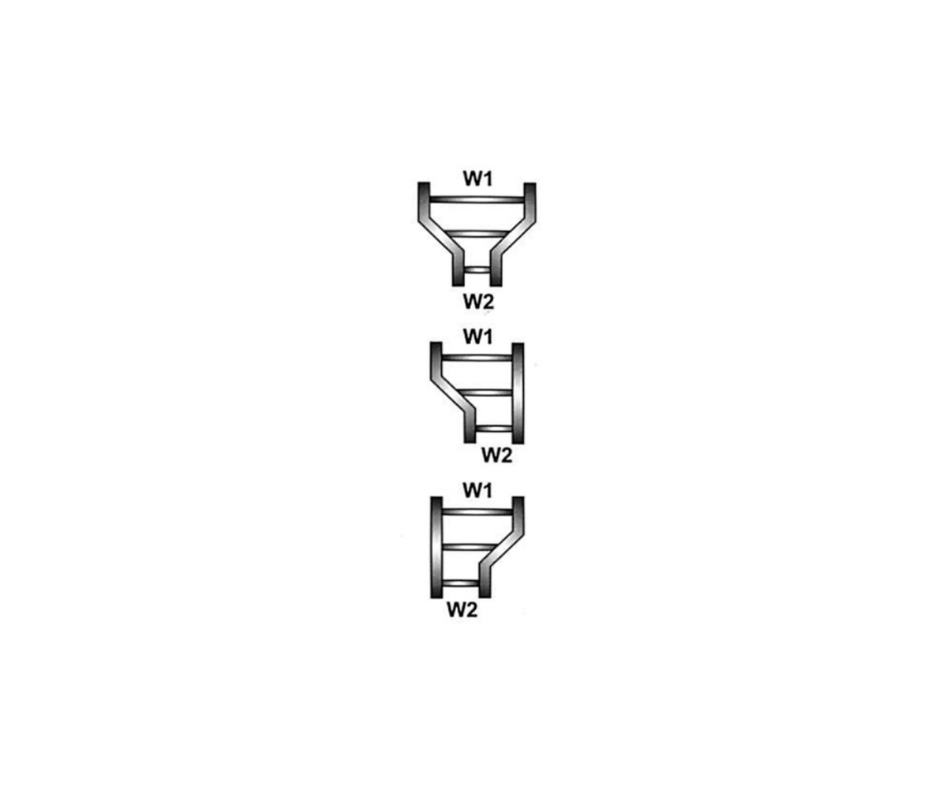

Straight Reducer Item Code: RS
Left Hand Reducer Item Code: RL
Right Hand Reducer Item Code: RR
Contact your sales representative for custom designs

Get a Quote Download Cut Sheet

Learn More

Additional Product Information

Class 1:

Designed for use with NEMA Classes 12B and 12C cable trays. These systems have 1 1/8" wide side rail flanges and 4-hole splice plates.

Class 2:

Designed for use with NEMA Classes 20A, 20B and 20C cable trays. These systems have 2" wide side rail flanges and 4-hole splice plates.

Class 3:

Designed for use with NEMA Classes that exceed 20C. These systems have 2 3/8" wide side rail flanges and 8-hole splice plates.
