General Fittings - Channel Nuts

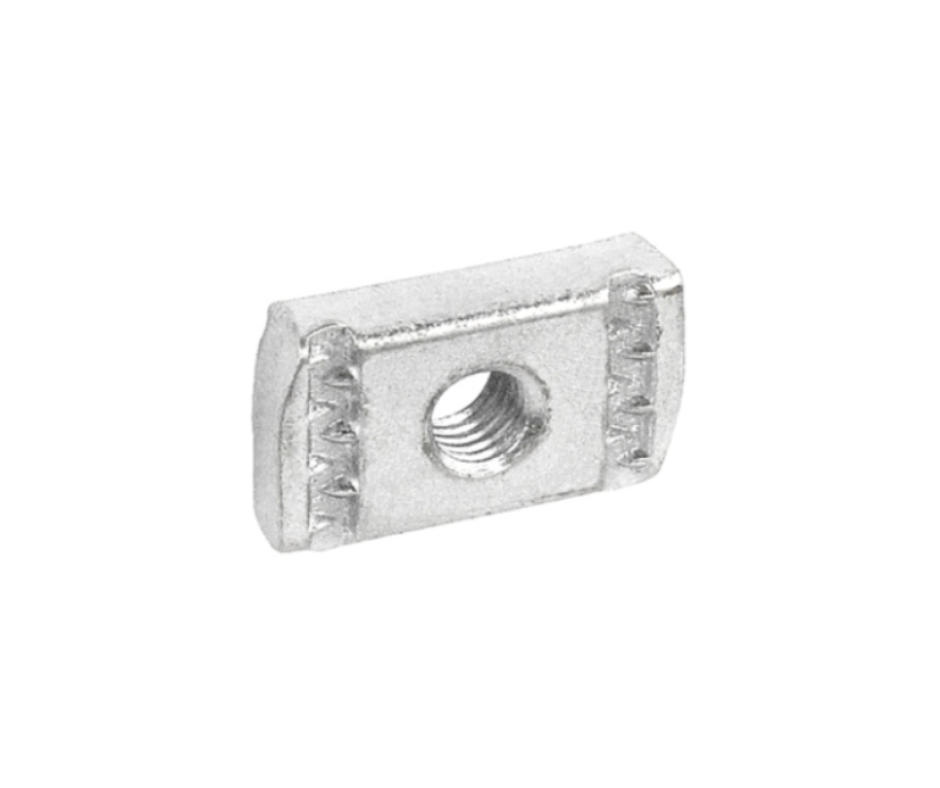

No-Spring Nuts
Product Description
No Spring Nuts serve the vital purpose of securely positioning and fastening fittings, electrical panels, junction boxes, or piping clamps within strut channels. Crafted with precision, they feature grooved sides that effortlessly slide over the channel edge, along with a convenient threaded screw hole.
- Available in Electro Galvanized (EG), Hot Dipped Galvanized (HD), Stainless Steel 316 (SS6), and Aluminum (AL)
- Channel Compatibility: ALL
- Various sizes and finishes or material available. Read below for more details
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
- Competitor SKUs
Details
| Part No. | Size | Thickness | Box Qty |
| NS832 | 8/32" | 1/4" | 100 |
| NS1032 | 10/32" | 1/4" | 100 |
| NS1024 | 10/24" | 1/4" | 100 |
| NS14 | 1/4" | 1/4" | 100 |
| NS516 | 5/16" | 3/8" | 100 |
| NS38 | 3/8" | 3/8" | 100 |
| NSS38 | 3/8" | 1/4" | 100 |
| NS716 | 7/16" | 3/8" | 100 |
| NSS12 | 1/2" | 3/8" | 100 |
| NS58 | 5/8" | 7/16" | 100 |
| NSS58 | 5/8" | 3/8" | 100 |
| NS34 | 3/4" | 7/16" | 100 |
| NS78 | 7/8" | 7/16" | 100 |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Available Materials Include:
Stainless Steel 316 (SS6)
Aluminum (AL)
Competitor SKUs
P3006
P3007
P3008
P3009
P3010
P3013
