Pipe Hangers

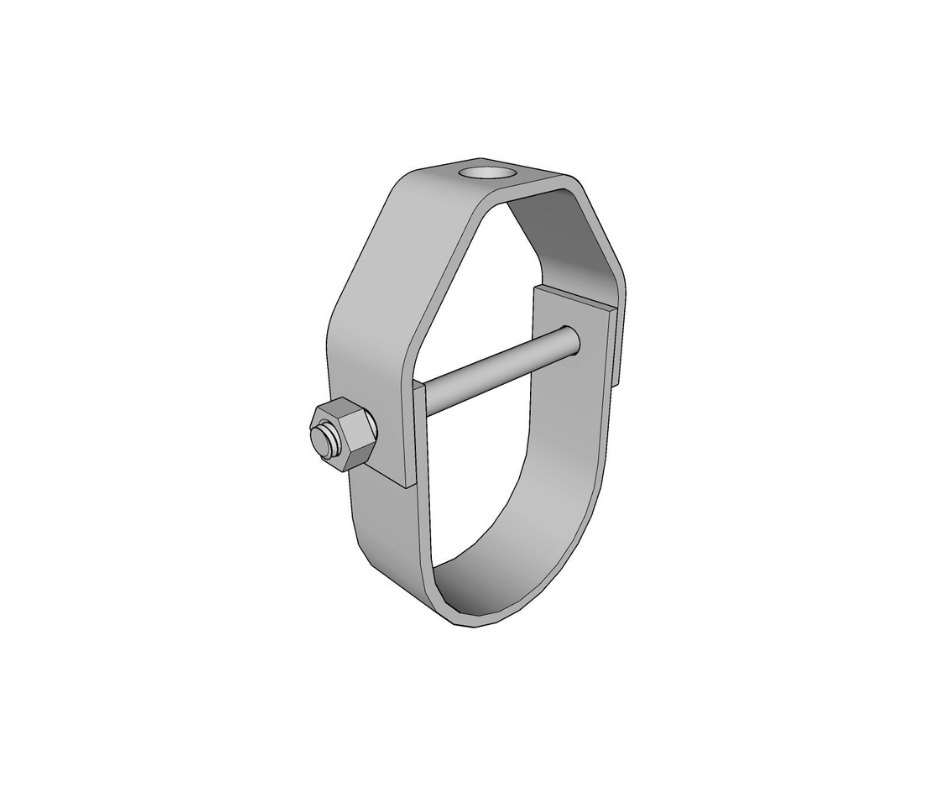

Clevis Hanger
Product Description
Clevis Hangers are the ultimate solution for perfect vertical adjustment of your pipes. These attachments feature a clevis type top securely bolted to a robust bottom strap made of high-quality formed steel.- Available Finishes include Electro Galvanized (EG) and Hot Dipped Galvanized (HD)
- Available Materials Include Stainless Steel 304 (SS4) and Stainless Steel 316 (SS6)
- Other Clevis Hangers available include Flat Top, Adjustable Clevis Hanger for Ductile Iron Pipe, V Bottom, Extended Bottom, and Clevis Hanger with Welded Shield
- Contact your sales representative for availability
Learn More
Additional Product Information
- Adjustable Clevis Hanger Details
- Lightweight Clevis Hanger Details
- Finishes
Adjustable Clevis Hanger Details
Adjustable Clevis Hanger
| Part No | Dimensions | Pipe OD | Bolt |
| FIG1112 | 1/2" | 0.840 | 1/4" |
| FIG1134 | 3/4" | 1.050 | 1/4" |
| FIG111 | 1" | 1.315 | 1/4" |
| FIG11114 | 1 1/4" | 1.660 | 1/4" |
| FIG11112 | 1 1/2" | 1.900 | 1/4" |
| FIG112 | 2" | 2.375 | 1/4" |
| FIG11212 | 2 1/2" | 2.870 | 5/16" |
| FIG113 | 3" | 3.500 | 5/16" |
| FIG11312 | 3 1/2" | 4.00 | 5/16" |
| FIG114 | 4" | 4.500 | 3/8" |
| FIG115 | 5" | 5.563 | 1/2" |
| FIG116 | 6" | 6.625 | 1/2" |
| FIG117 | 7" | 7.625 | 1/2" |
| FIG118 | 8" | 8.625 | 5/8" |
| FIG1110 | 10" | 10.750 | 3/4" |
| FIG1112 | 12" | 12.750 | 3/4" |
| FIG1114 | 14" | 14.000 | 7/8" |
| FIG1116 | 16" | 16.000 | 1" |
| FIG1118 | 18" | 18.000 | 1" |
| FIG1120 | 20" | 20.000 | 1 1/4" |
| FIG1124 | 24" | 24.000 | 1 1/4" |
| FIG1130 | 30" | 30.000 | 1 1/4" |
Lightweight Clevis Hanger Details
Lightweight Clevis Hanger
| Part No | Dimensions | Pipe OD | Bolt |
| FIG11038 | 3/8" | 0.625 | 1/4" |
| FIG11012 | 1/2" | 0.840 | 1/4" |
| FIG11034 | 3/4" | 1.050 | 1/4" |
| FIG1101 | 1" | 1.315 | 1/4" |
| FIG110114 | 1 1/4" | 1.660 | 1/4" |
| FIG110112 | 1 1/2" | 1.900 | 1/4" |
| FIG1102 | 2" | 2.375 | 1/4" |
| FIG110212 | 2 1/2" | 2.870 | 1/4" |
| FIG1103 | 3" | 3.500 | 5/16" |
| FIG110312 | 3 1/2" | 4.000 | 5/16" |
| FIG1104 | 4" | 4.500 | 3/8" |
*Not available in Stainless Steel 304 (SS4)
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
