Pipe Hangers

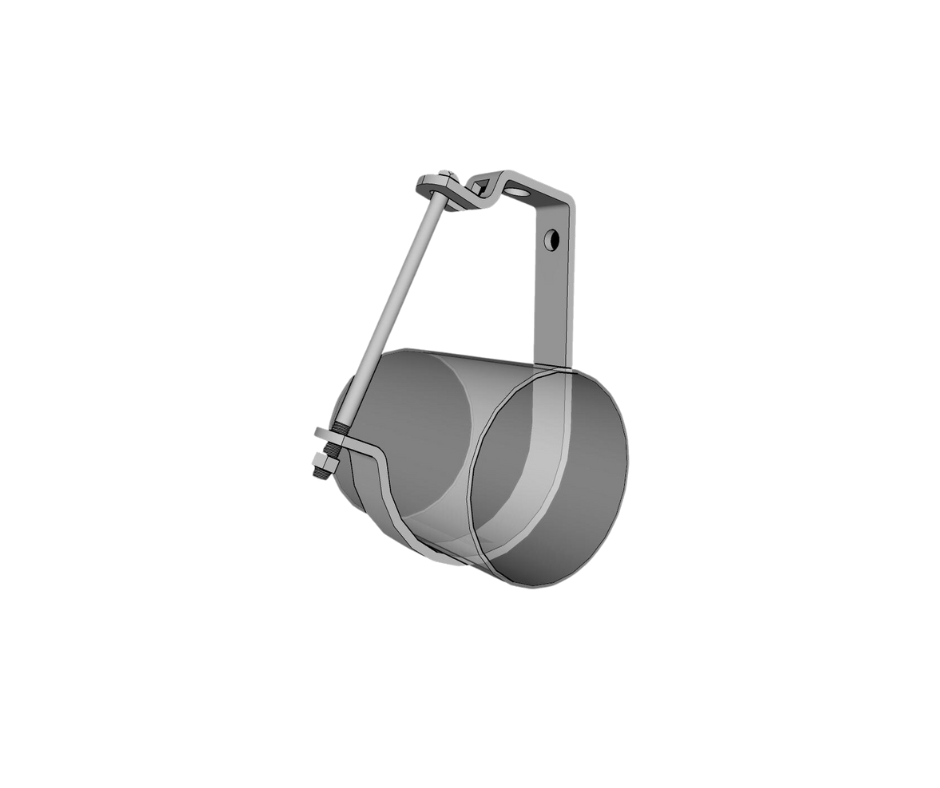

FIG418 J Hanger
Product Description
FIG418 J Hangers are meticulously crafted to suspend non-insulated, fixed pipe lines with utmost precision. When it comes to shielding against the ravages of a corrosive environment, our Stainless Steel hangers reign supreme.- Available Finishes include Electro Galvanized (EG)
- Available Materials Include Stainless Steel 304 (SS4) and Polyvinyl Chloride (PVC)
- Contact your sales representative for availability
.png?width=940&height=788&name=J%20Hanger%20(1).png)
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | Dimensions | Pipe OD | Bolt |
| FIG41812 | 1/2" | 0.840 | 1/4" |
| FIG41834 | 3/4" | 1.050 | 1/4" |
| FIG4181 | 1" | 1.315 | 1/4" |
| FIG418114 | 1 1/4" | 1.660 | 1/4" |
| FIG418112 | 1 1/2" | 1.900 | 1/4" |
| FIG4182 | 2" | 2.375 | 1/4" |
| FIG418212 | 2 1/2" | 2.870 | 3/8" |
| FIG4183 | 3" | 3.500 | 3/8" |
| FIG418312 | 3 1/2" | 4.000 | 3/8" |
| FIG4184 | 4" | 4.500 | 3/8" |
| FIG4185 | 5" | 5.563 | 3/8" |
| FIG4186 | 6" | 6.625 | 3/8" |
| FIG4188 | 8" | 8.625 | 3/8" |
| FIG41810 | 10" | 10.750 | 3/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Available Materials Include:
Stainless Steel 304 (SS4)
Polyvinyl Chloride (PVC)
