General Fittings - Angle
603
Product Description
Angle fittings that connect channels at the corners play an integral role in the construction of strut channel structures. These fittings not only provide stability to the structures but also support heavy loads against walls. With an extensive range of dimensions, finishes, and materials to choose from, we guarantee to provide the perfect solution tailored to your specific needs and deadlines.
- Available finishes include Electro Galvanized (EG), Hot Dipped Galvanized (HD), Gold Zinc Trivalent Chromium (GD) and Green (GR). Materials include Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), and Aluminum (AL)
- Offered with 2 holes
- More details on dimensions, hole spacing, and hole size available below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
- Competitor SKUS
Details

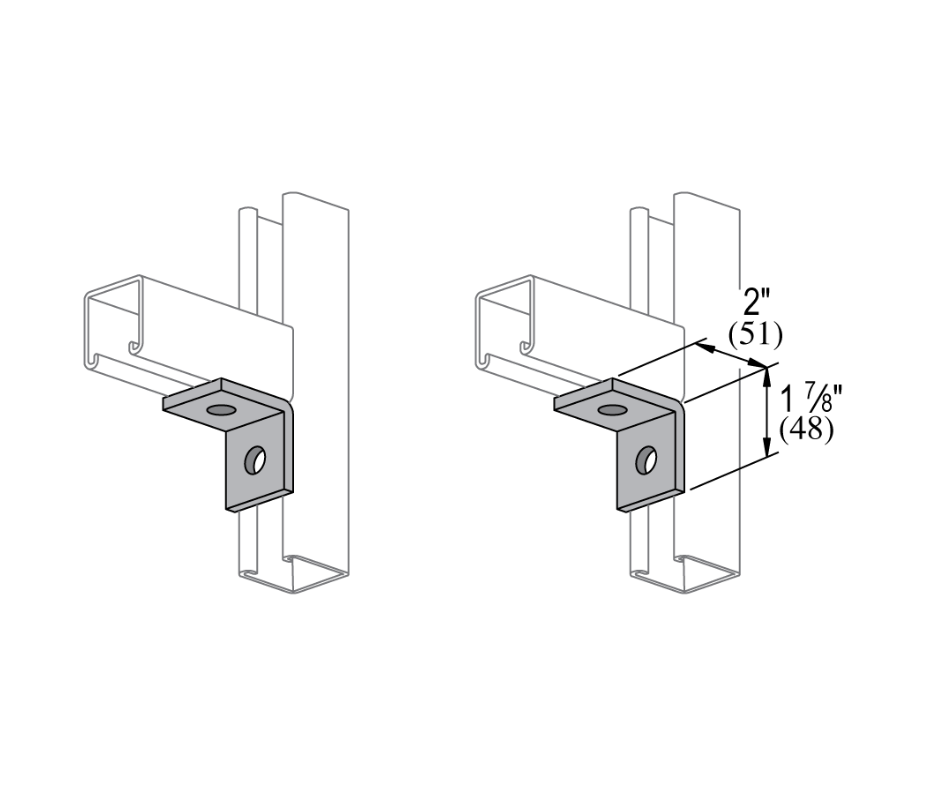

| Part No | Holes | Dimensions | Width | Hole Size | Hole Spacing - From End | Hole Spacing - From Corner | Hole Spacing - On Center |
| 603 | 2 | 1 7/8" x 2" | 1 5/8" | 9/16" | 13/16" | 1 7/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Green (GR)
Gold Zinc Trivalent Chromium (GD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Aluminum (AL)
Competitor SKUS
B101
B230
