General Fittings - Angle
605
Product Description

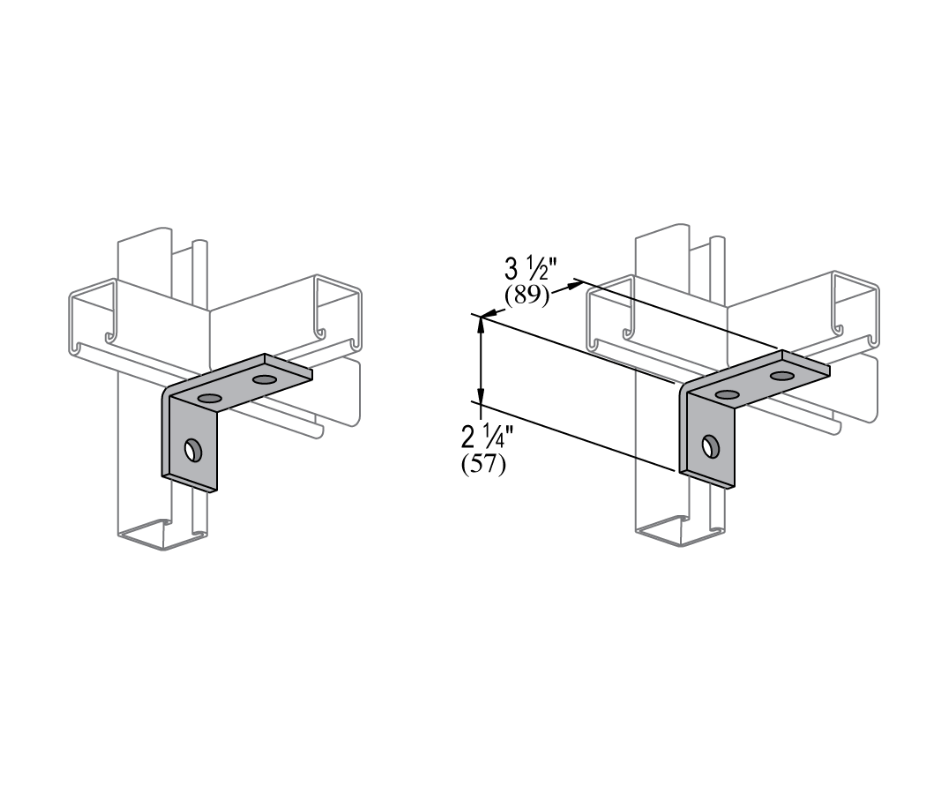

605 Angle Fittings, essential for the construction of sturdy strut channel structures, seamlessly connect channels at the corners. We offer a wide variety of dimensions, finishes, and materials to cater to your unique requirements and tight deadlines. You can trust that we are dedicated to providing the perfect solution that perfectly caters to your specific needs.
- Available finishes include Electro Galvanized (EG), Hot Dipped Galvanized (HD), Gold Zinc Trivalent Chromium (GD) and Green (GR). Materials include Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), and Aluminum (AL)
- Offered with 3 holes
- More details on dimensions, hole spacing, and hole size available below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | Holes | Dimensions | Width | Hole Size | Hole Spacing - From End | Hole Spacing - From Corner | Hole Spacing - On Center |
| 605 | 3 | 2 1/4" x 3 1/2" | 1 5/8" | 9/16" | 13/16" | 1 7/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Green (GR)
Gold Zinc Trivalent Chromium (GD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Aluminum (AL)
