General Fittings - Angle
607
Product Description
607 Angle Fittings are essential components for constructing sturdy strut channel structures, seamlessly connecting channels at the corners. Our diverse selection of dimensions, finishes, and materials is specifically tailored to meet your specific needs and strict timelines. Be confident that we are devoted to providing the perfect solution that precisely caters to your individual requirements.
- Available finishes include Electro Galvanized (EG), Hot Dipped Galvanized (HD), Gold Zinc Trivalent Chromium (GD) and Green (GR). Materials include Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), and Aluminum (AL)
- Offered with 4 holes
- More details on dimensions, hole spacing, and hole size available below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
- Competitor SKUS
Details

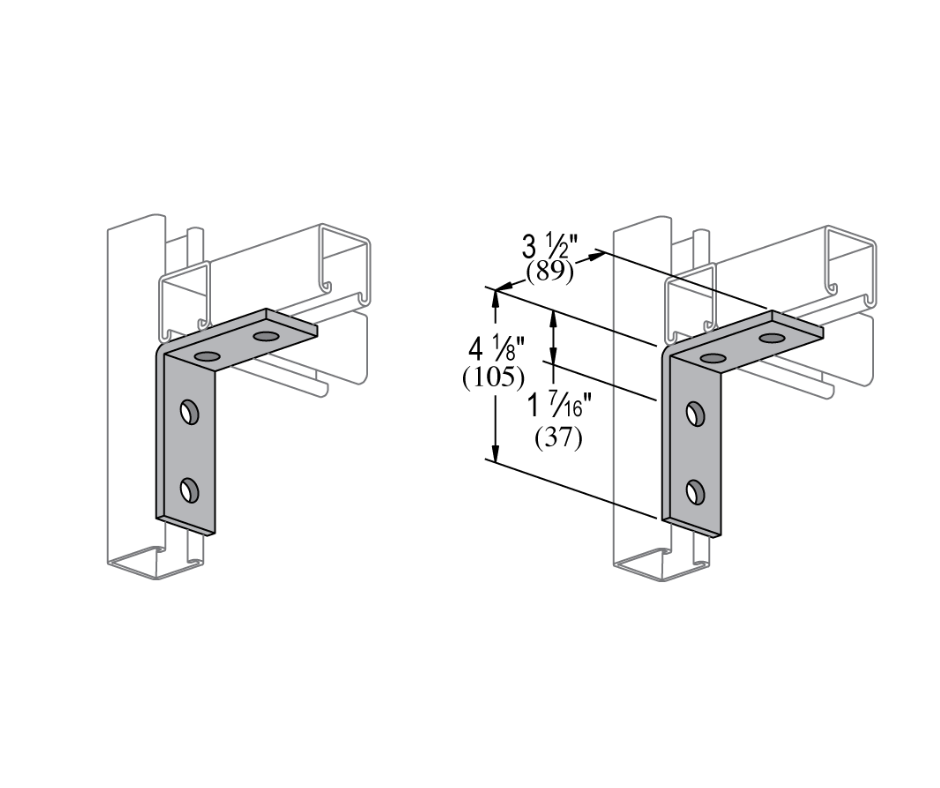

| Part No | Holes | Dimensions | Width | Hole Size | Hole Spacing - From End | Hole Spacing - From Corner | Hole Spacing - On Center |
| 607 | 4 | 3 1/2" x 4 1/8" | 1 5/8" | 9/16" | 13/16" | 1 7/16" | 1 7/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Green (GR)
Gold Zinc Trivalent Chromium (GD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Aluminum (AL)
Competitor SKUS
B104
B115
