General Fittings - Brackets
808 Series
Product Description

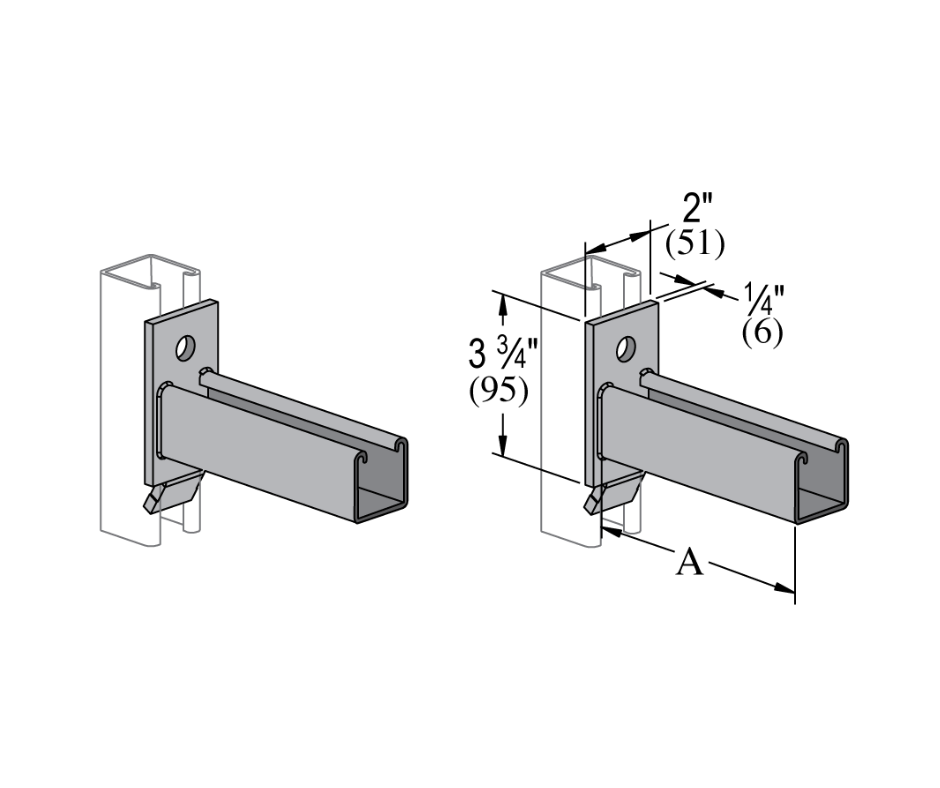

The 808 Series Interlocking Channel Brackets are specifically engineered for use in any strut channel application. PUPCO provides an extensive range of dimensions, finishes, and materials to cater to your individual project needs.
- Available finishes include Electro Galvanized (EG) and Hot Dipped Galvanized (HD)
- Available material is Stainless Steel 304 (SS4)
- More details on dimensions and hole size below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | A | Dimensions | Holes | Hole Size | Slot Direction |
| 8086T1 | 6" | 3 3/4" | 1 | 9/16" | Up |
| 80812T1 | 12" | 3 3/4" | 1 | 9/16" | Up |
| 80818T1 | 18" | 3 3/4" | 1 | 9/16" | Up |
| 80824T1 | 24" | 3 3/4" | 1 | 9/16" | Up |
| 8086T2 | 6" | 3 3/4" | 1 | 9/16" | Down |
| 80812T2 | 12" | 3 3/4" | 1 | 9/16" | Down |
| 80818T2 | 18" | 3 3/4" | 1 | 9/16" | Down |
| 80824T2 | 24" | 3 3/4" | 1 | 9/16" | Down |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Available Materials Include:
Stainless Steel 304 (SS4)
