General Fittings - Brackets
809 Series
Product Description
The 809 Series Double Channel Brackets are a type of bracket or cantilever made of strut channel for mounting pipe or conduit. PUPCO provides an extensive range of dimensions, finishes, and materials to cater to your individual project needs.
- Available finishes include Electro Galvanized (EG) and Hot Dipped Galvanized (HD)
- Available material is Stainless Steel 304 (SS4)
- More details on dimensions and hole size below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
- COMPETITOR SKUs

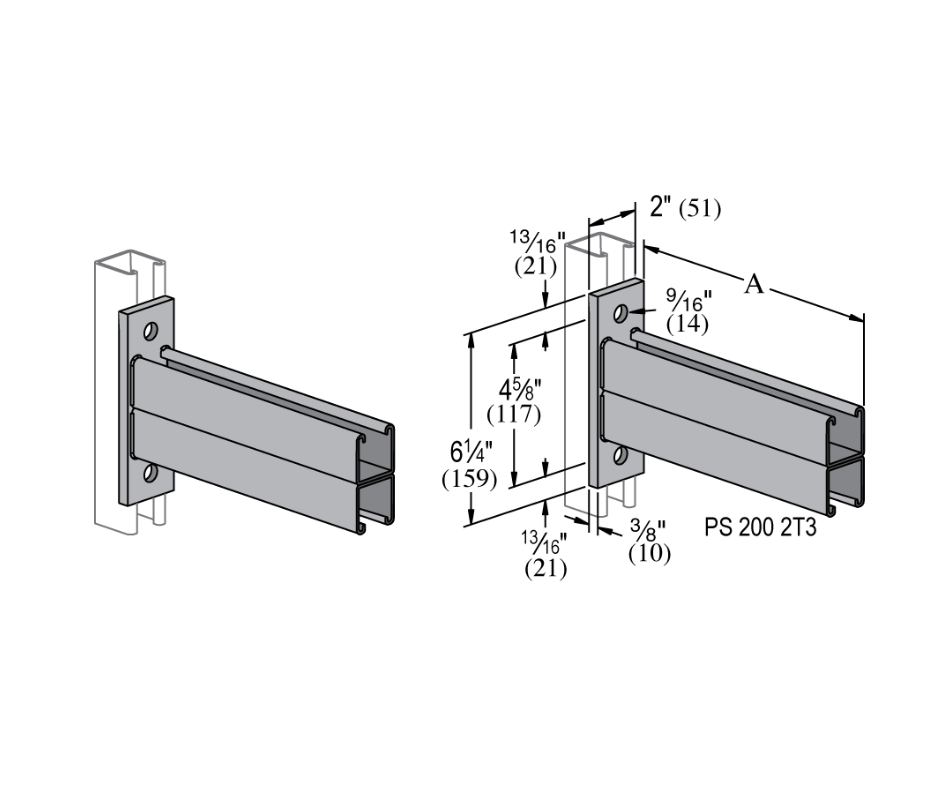

Details
| Part No | A | Dimensions | Holes | Hole Size | Slot Direction |
| 80912 | 12" | 6 1/4" x 2" | 2 | 9/16" | Up & Down |
| 80918 | 18" | 6 1/4" x 2" | 2 | 9/16" | Up & Down |
| 80924 | 24" | 6 1/4" x 2" | 2 | 9/16" | Up & Down |
| 80930 | 30" | 6 1/4" x 2" | 2 | 9/16" | Up & Down |
| 80936 | 36" | 6 1/4" x 2" | 2 | 9/16" | Up & Down |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Available Materials Include:
Stainless Steel 304 (SS4)
COMPETITOR SKUs
B297
P2546
