General Fittings - Hinged Angle
9403
Product Description

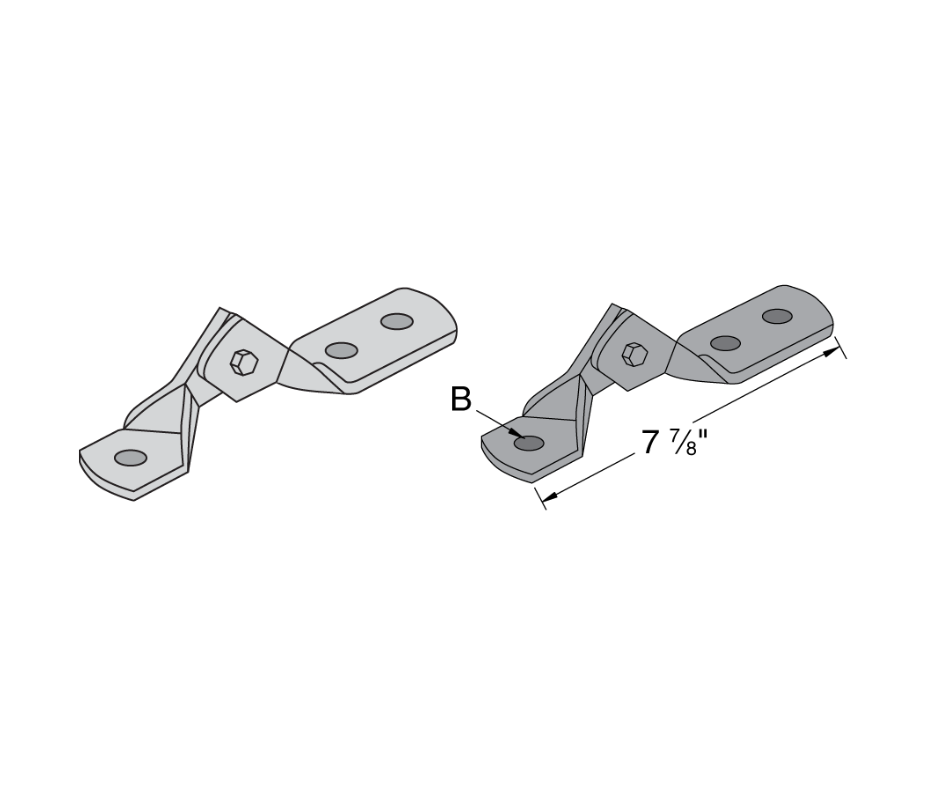

The edges of hinged angle fittings are designed to provide an alignment guide for 0, 45, and 90 degree installation. This eliminates the need for measuring gages. The fittings are hinged with a Grade 5 bolt and nylon insert locknut for superior strength and to prevent loosening of the hinge.
- Available finishes include Electro Galvanized (EG) and Hot Dipped Galvanized (HD)
- Materials include Stainless Steel 304 (SS4) and Stainless Steel 316 (SS6)
- Offered with 3 holes
- More details on dimensions, hole spacing, and hole size available below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | Holes | Dimensions | Bolt Size |
| 940312 | 3 | 7 7/8" x 1 5/8" | 1/2" |
| 940334 | 3 | 7 7/8" x 1 5/8" | 3/4" |
| 940358 | 3 | 7 7/8" x 1 5/8" | 5/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Green (GR)
Gold Zinc Trivalent Chromium (GD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
