Flat Plate Corner Fitting
Product Description
Our Flat Plate Corner Fitting allows you to join two sections of strut channel together at a 90° angle. We offer a wide range of dimensions, finishes, and materials to provide you with a customized solution that perfectly aligns with your unique requirements and time constraints.
- Available finishes include Electro Galvanized (EG), Hot Dipped Galvanized (HD), Gold Zinc Trivalent Chromium (GD) and Green (GR). Materials include Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), and Aluminum (AL)
- Offered with 3, 4, or 5 holes
- More details on dimensions, hole spacing, and hole size available below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
- Competitor SKUS
Details
| Part No | Dimensions | Holes | Hole Size | Hole Spacing - From End | Hole Spacing - On Center |

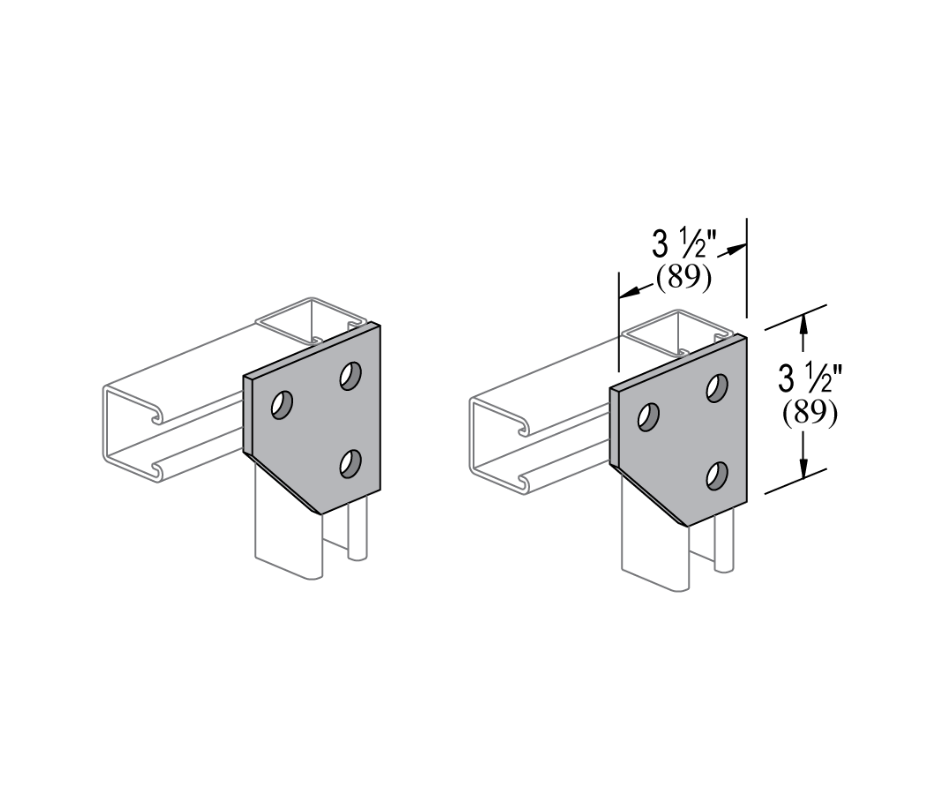

| 744 | 3 1/2" x 3 1/2" | 3 | 9/16" | 13/16" | 1 7/8" |
| 750 | 5 3/8" x 3 1/2" | 4 | 9/16" | 13/16" | 1 7/8" |
| 2190 | 5 3/8" | 5 | 13/16" | 1 7/8" | 1 7/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Green (GR)
Gold Zinc Trivalent Chromium (GD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Aluminum (AL)
Competitor SKUS
P1873
