General Fittings - Flat

Flat Plate Fitting

Product Description

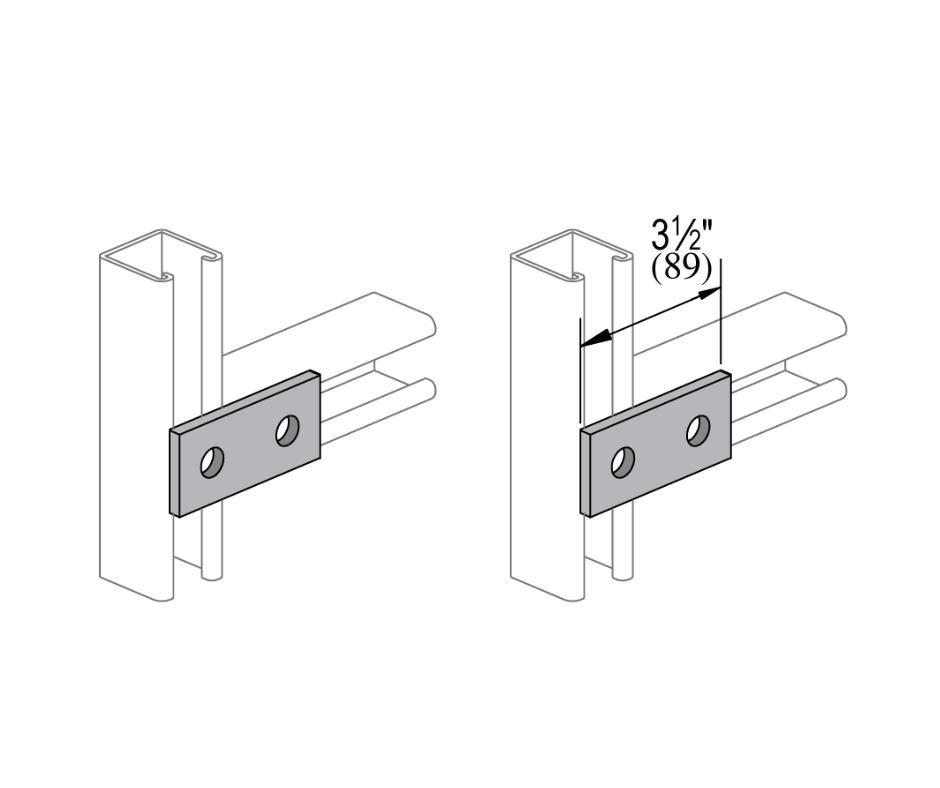

Our Flat Plate Fitting allows you to join two sections of strut channel together at an angle. We offer a wide range of dimensions, finishes, and materials to provide you with a customized solution that perfectly aligns with your unique requirements and time constraints.

Available finishes include Electro Galvanized (EG), Hot Dipped Galvanized (HD), Gold Zinc Trivalent Chromium (GD) and Green (GR). Materials include Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), and Aluminum (AL)
Offered with 2, 3, 4, or 5 holes
More details on dimensions, hole spacing, and hole size available below
Contact your sales representative for availability

Get a Quote Download Cut Sheet

Learn More

Additional Product Information

Part No	Holes	Dimensions	Bolt Size
601	2	3 1/2" x 1 5/8"	9/16"
602	3	5 3/8" x 1 5/8"	9/16"
888	4	7 1/4" x 1 5/8"	9/16"
8885	5	9 1/8" x 1 5/8"	9/16"

Download 602 Cut Sheet Download 888 Cut Sheet

Available Finishes Include:

Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Green (GR)
Gold Zinc Trivalent Chromium (GD)

Available Materials Include:

Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Aluminum (AL)
