General Fittings - Flat
Guided Square Washer
Product Description

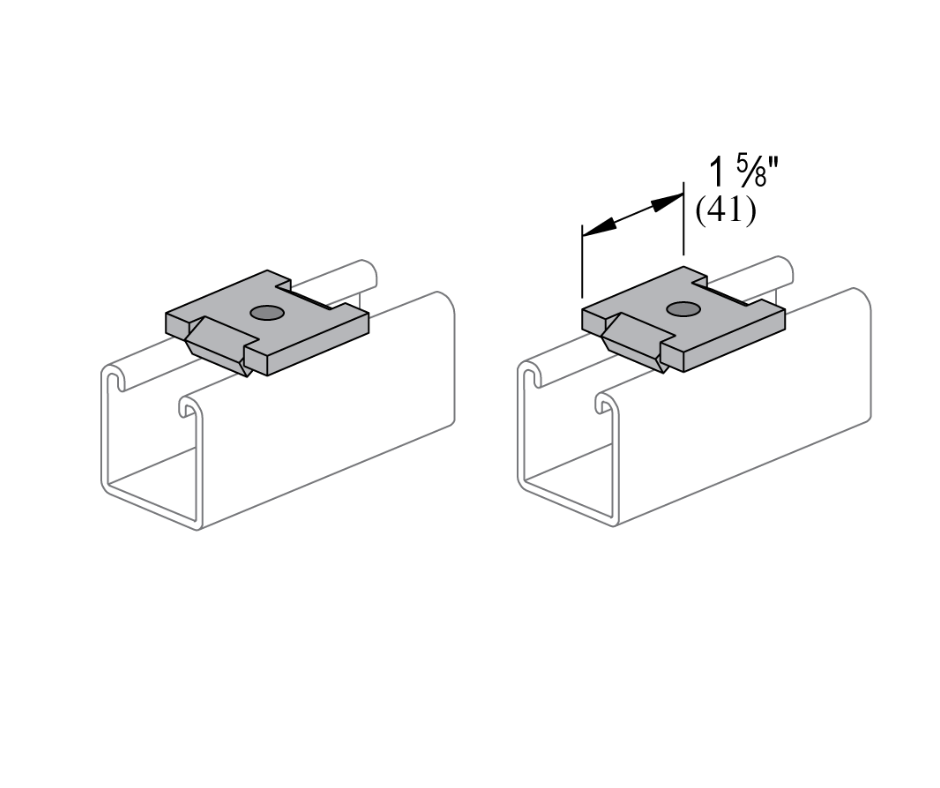

Square Washers are connectors for intersecting strut channels. Our extensive selection of dimensions, finishes, and materials guarantees that we can provide the ideal solution customized to meet your specific requirements and deadlines.
- Available finishes include Electro Galvanized (EG) and Hot Dipped Galvanized (HD). Materials include Plain Steel (BK), Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), and Aluminum (AL)
- More details on dimensions, thickness, bolt size and hole size available below.
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | Dimensions | Thickness | Bolt Size | Hole Size |
| 250414 | 1-5/8" x 1-5/8" | 1/4" | 1/4" | 11/32" |
| 250438 | 1-5/8" x 1-5/8" | 1/4" | 3/8" | 7/16" |
| 250412 | 1-5/8" x 1-5/8" | 1/4" | 1/2" | 9/16" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (GD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Plain Steel (BK)
Aluminum (AL)
