General Fittings - Channel Nuts

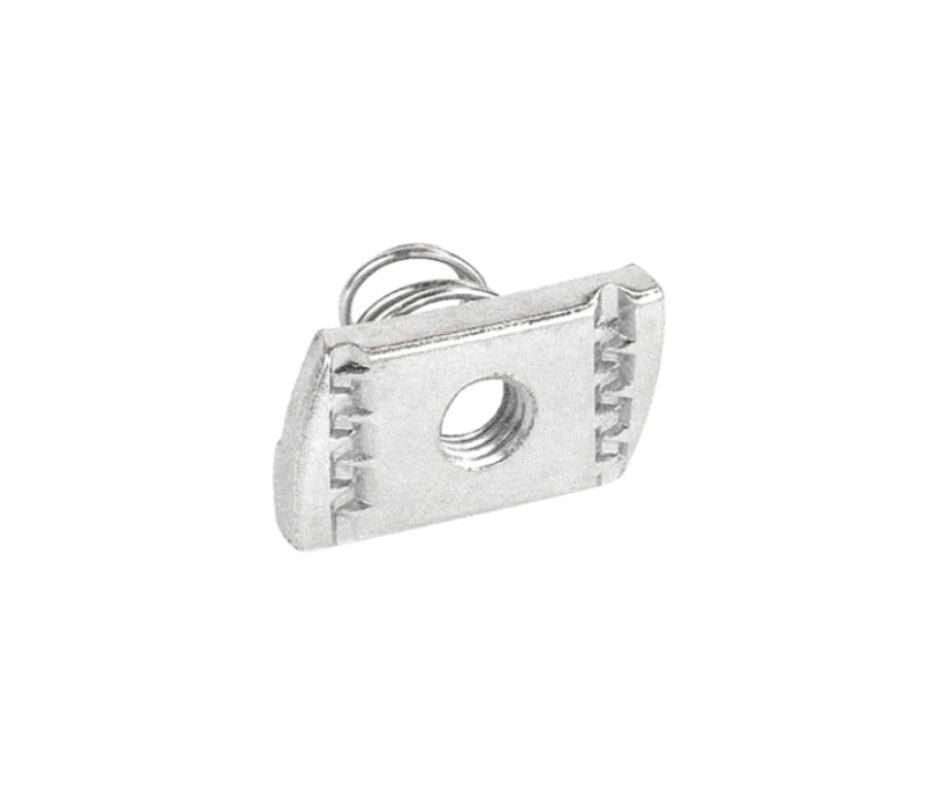

Short Spring Nuts
Product Description
Constructed with a resilient spring and serrated grooves designed to firmly grasp the edge of the strut channel, Short Spring Nuts offer an assured fastening solution for screws or bolts. Specifically tailored for use in shallow channels, these nuts provide a secure and dependable mounting point.
- Available in Electro Galvanized (EG), Hot Dipped Galvanized (HD), Stainless Steel 316 (SS6), and Aluminum (AL).
- Channel Compatibility: 152, 162, 164, 172, 179.
- Various sizes and finishes or material available. Read below for more details
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No. | Size | Thickness | Box Qty |
| SS832 | 8/32" | 1/4" | 100 |
| SS1032 | 10/32" | 1/4" | 100 |
| SS1024 | 10/24" | 1/4" | 100 |
| SS14 | 1/4" | 1/4" | 100 |
| SS516 | 5/16" | 3/8" | 100 |
| SS38 | 3/8" | 3/8" | 100 |
| SSS38 | 3/8" | 1/4" | 100 |
| SS716 | 7/16" | 3/8" | 100 |
| SSS12 | 1/2" | 3/8" | 100 |
| SS58 | 5/8" | 7/16" | 100 |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Available Materials Include:
Stainless Steel 316 (SS6)
Aluminum (AL)
