General Fittings - Flat
Swivel Plates
Product Description
Our versatile Swivel Plates allow for seamless movement in all directions, connecting various parts and components effortlessly. With an extensive range of dimensions, finishes, and materials to choose from, we guarantee to provide the perfect solution tailored to your specific needs and deadlines.
- Available finishes include Electro Galvanized (EG), Hot Dipped Galvanized (HD), and Green (GR). Materials include Stainless Steel 304 (SS4) and Stainless Steel 316 (SS6)
- More details on dimensions, hole spacing, and hole size available below.
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
Part No | Dimensions | Holes | Hole Size | Hole Spacing - From End | Hole Spacing - On Center |

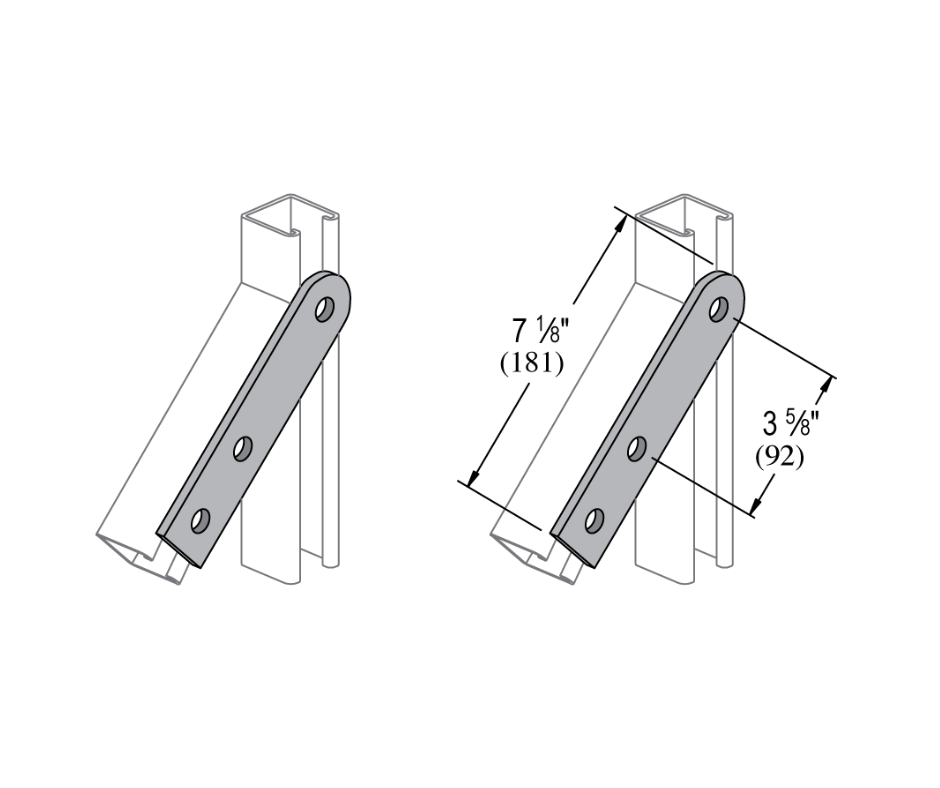

617 | 7 1/8" x 3 5/8" | 3 | 9/16" | 13/16" | 1 7/8" |

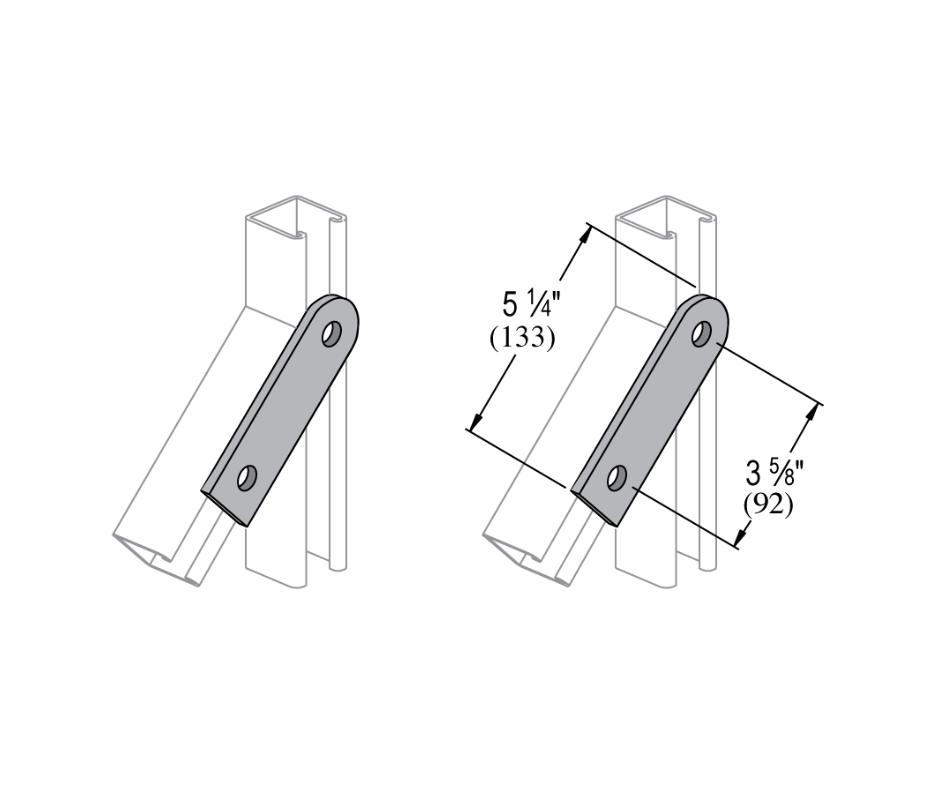

618 | 5 1/4" x 3 5/8" | 2 | 9/16" | 13/16" | 1 7/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (GD)
Green (GR)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
