General Fittings - Flat
Tee Plates
Product Description

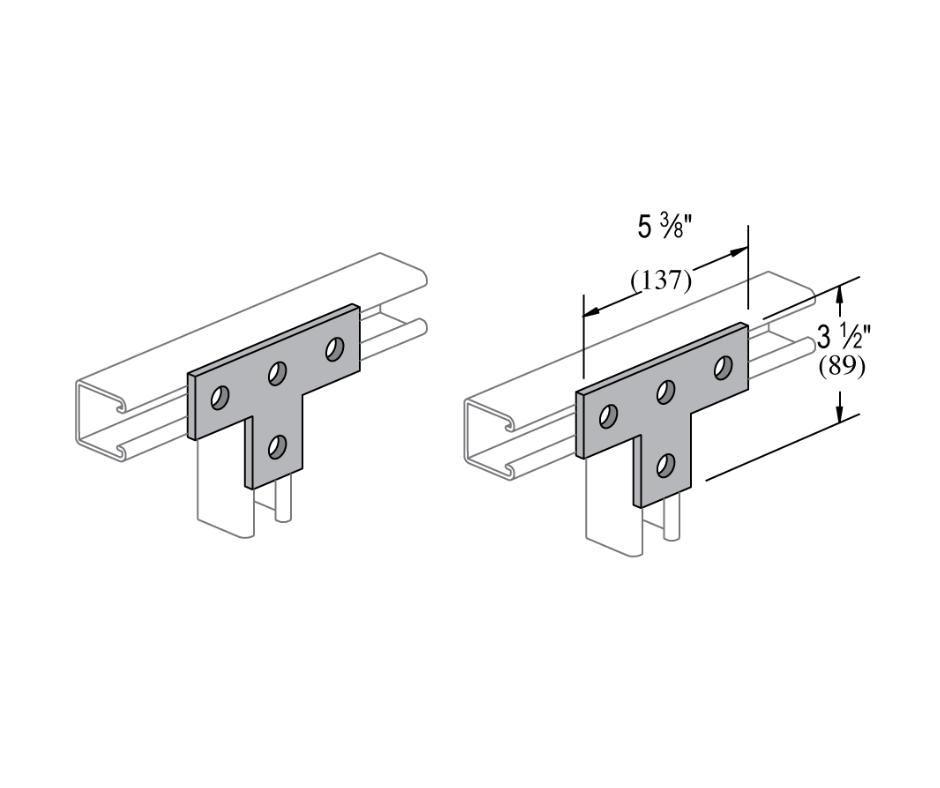

Our tee plates serve as the perfect solution for connecting two pieces of strut channel at a precise 90° angle. Not only do they reinforce flat surface joints with utmost strength, but they also guarantee a secure and reliable connection. With an extensive range of dimensions, finishes, and materials to choose from, we guarantee to provide the perfect solution tailored to your specific needs and deadlines.
- Available finishes include Electro Galvanized (EG), Hot Dipped Galvanized (HD), Gold Zinc Trivalent Chromium (GD) and Green (GR). Materials include Stainless Steel 304 (SS4), Stainless Steel 316 (SS6), and Aluminum (AL).
- More details on dimensions, hole spacing, and hole size available below.
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | Dimensions | Holes | Hole Size | Hole Spacing - From End | Hole Spacing - On Center |
| 714 | 3 1/2" x 5 3/8" x 1 5/8" | 4 | 9/16" | 13/16" | 1 7/8" |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Green (GR)
Gold Zinc Trivalent Chromium (GD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Aluminum (AL)
