General Fittings - Brackets
661 Series
Product Description

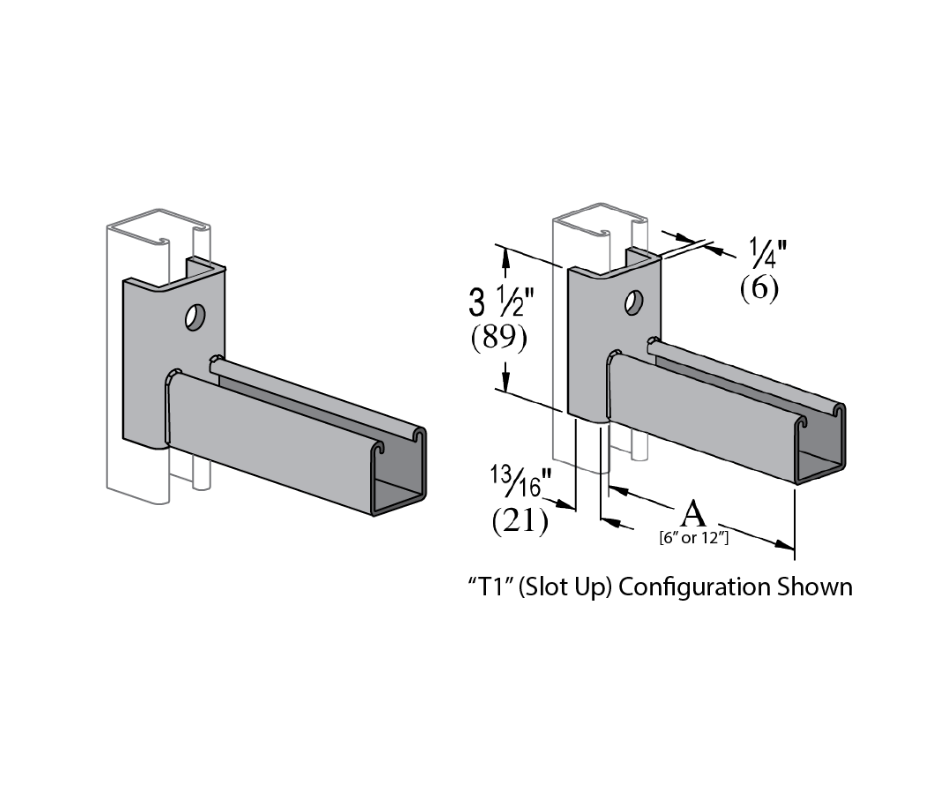

The 661 Series Wrap Around Brackets are crafted to provide sturdy support for pipes or conduits, whether they are suspended from a threaded rod or supported as a cantilever from the wall. PUPCO offers a plethora of dimensions, finishes, and materials to choose from, allowing you to tailor your next project to perfection.
- Available finishes include Electro Galvanized (EG), Hot Dipped Galvanized (HD), and Green (GR)
- More details on dimensions and hole size below
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | Dimensions | Holes | Hole Size | Slot Direction |
| 6616T1 | 6" x 3 1/2" | 1 | 9/16" | Up |
| 66112T1 | 12" x 3 1/2" | 1 | 9/16" | Up |
| 66118T1 | 18" x 5 3/8" | 1 | 9/16" | Up |
| 66124T1 | 24" x 5 3/8" | 1 | 9/16" | Up |
| 6616T2 | 6" x 3 1/2" | 1 | 9/16" | Down |
| 66112T2 | 12" x 3 1/2" | 1 | 9/16" | Down |
| 66118T2 | 18" x 5 3/8" | 1 | 9/16" | Down |
| 66124T2 | 24" x 5 3/8" | 1 | 9/16" | Down |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Green (GR)
