Pipe Clamps
3126 Series Pipe Strap
Product Description

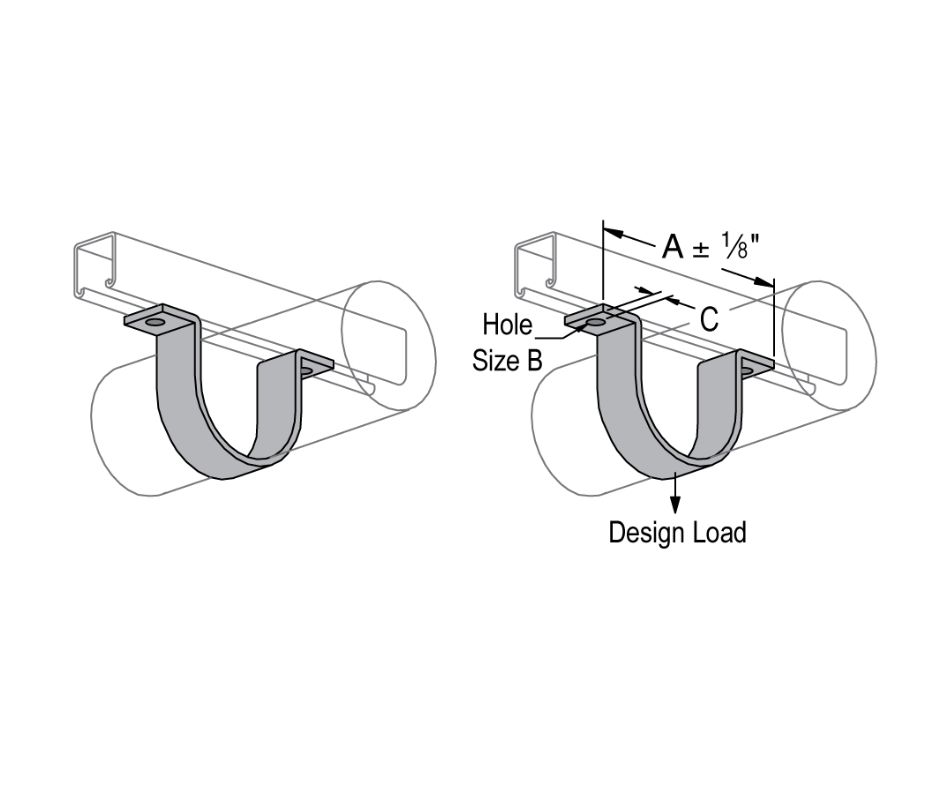

3126 Series Pipe Straps/Hold Down Clamp are curved structures generally used to either guide or anchor a pipe and are usually attached to the surrounding structural steel components.- Available Finishes include Electro Galvanized (EG) and Hot Dipped Galvanized (HD)
- Available Materials include Stainless Steel 304 (SS4), Stainless Steel 316 (SS6) and Aluminum (AL)
- Contact your sales representative for availability
Learn More
Additional Product Information
- Details
- Finishes
Details
| Part No | Size | Holes | Weight/100 Pcs |
| 312612 | 1/2" | 2 | 23 |
| 312634 | 3/4" | 2 | 26 |
| 31261 | 1" | 2 | 31 |
| 3126114 | 1 1/4" | 2 | 35 |
| 3126112 | 1 1/2" | 2 | 39 |
| 31262 | 2" | 2 | 94 |
| 3126212 | 2 1/2" | 2 | 114 |
| 31263 | 3" | 2 | 133 |
| 3126312 | 3 1/2" | 2 | 152 |
| 31264 | 4" | 2 | 176 |
| 31265 | 5" | 2 | 198 |
| 31266 | 6" | 2 | 225 |
| 31268 | 8" | 2 | 280 |
| 312610 | 10" | 2 | 335 |
| 312612 | 12" | 2 | 390 |
Finishes
Available Finishes Include:
Electro Galvanized (EG)
Hot Dipped Galvanized (HD)
Available Materials Include:
Stainless Steel 304 (SS4)
Stainless Steel 316 (SS6)
Aluminum (AL)
