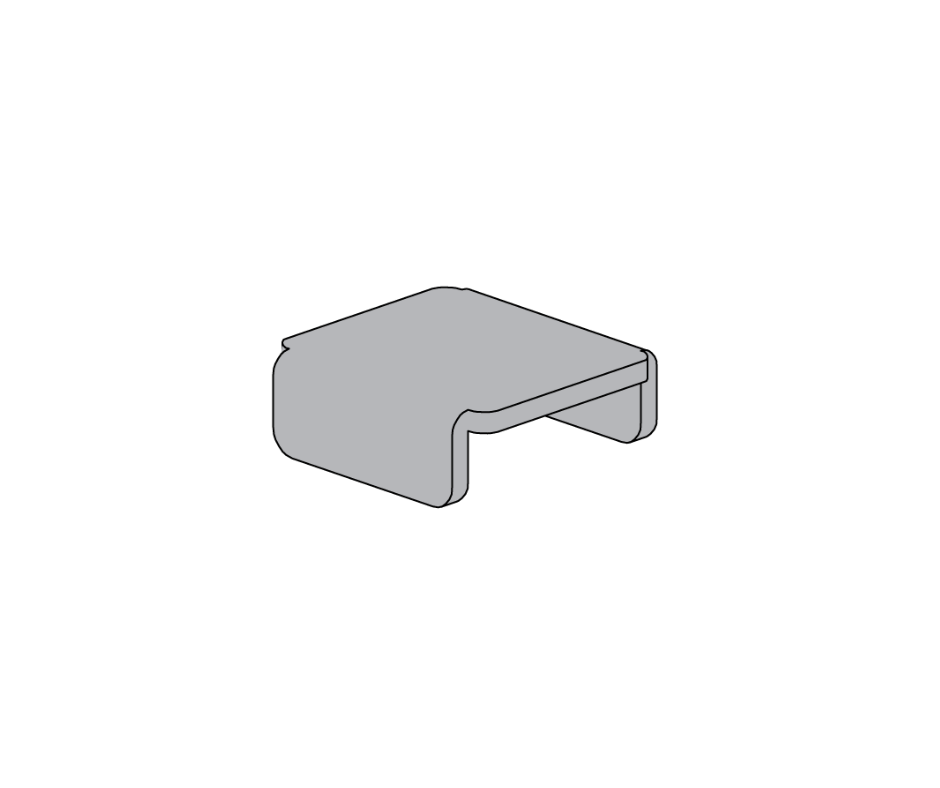

Type A Concrete Insert End Cap
Product Description
The Type A Concrete Insert End Cap are designed for the attachment or suspension of framing, piping or equipment to concrete structures where a continuous insert slot is required. These are supplied on all concrete inserts longer than 12".
- Part Numbers: 655, 656, 901, 902, 930. More details below.
- Contact your sales representative for availability
Learn More
Additional Product Information
- 655 & 656
- 901
- 902
- 930
655 & 656
Materials & Finishes:
- Pregalvanized (PG): Conforms to ASTM A 653, SS GR 33, G90.
- Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1 or SC 3
- Hot Dip Galvanized (HD): Conforms to ASTM A240 or A276, Type 304.
| Part No. | Channel Depth | Channel Part No | Weight/ 100 Pieces |
| 655 | 1 5/8" | 132 | 7 |
| 656 | 1 3/8" | 142 | 6 |
901
Materials & Finishes Available:
- Electrogalvanized (EG)
- Hot Dipped Galvanized (HD)
- Stainless Steel 304 (SS4)
- Stainless Steel 316 (SS6)
- Aluminum (AL)
| Part No | Channel Depth | Channel Part No | Weight/100 Pcs |
| 901 | 1" | 152 | 4 |
902
Materials & Finishes Available:
- Electrogalvanized (EG)
- Hot Dipped Galvanized (HD)
- Stainless Steel 304 (SS4)
- Stainless Steel 316 (SS6)
- Aluminum (AL)
| Part No | Channel Depth | Channel Part No | Weight/100 Pcs |
| 902 | 3 1/4" | 112 | 19 |
930
Materials & Finishes Available:
- Electrogalvanized (EG)
- Hot Dipped Galvanized (HD)
- Stainless Steel 304 (SS4)
- Stainless Steel 316 (SS6)
- Aluminum (AL)
| Part No | Channel Depth | Channel Part No | Weight/100 Pcs |
| 930 | 13/16" | 164 | 10 lbs |
