Strut Channel Accessories

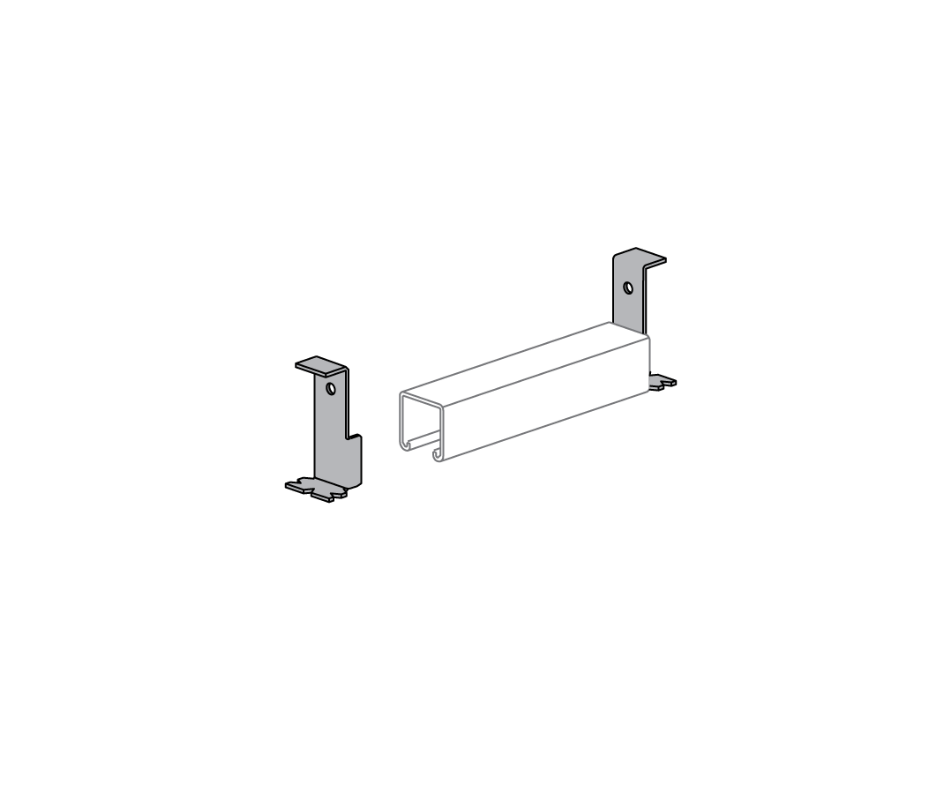

Type B Concrete Insert End Cap
Product Description
The Type B Concrete Insert End Cap is specifically engineered to securely attach or suspend framing, piping, or equipment to concrete structures that necessitate a continuous insert slot. These end caps are included with all inserts up to 12" in length and feature nail lugs at both ends for added stability. If desired, end caps can also be purchased separately.
- Part Numbers: 653, 654. More details below.
- Contact your sales representative for availability
Learn More
Additional Product Information
- 653
- 654
653
Materials & Finishes:
- Electrogalvanized (EG)
- Hot Dipped Galvanized (HD)
- Stainless Steel 304 (SS4)
- Stainless Steel 316 (SS6)
- Aluminum (AL)
| Part No. | Channel Depth | Channel Part No | Weight/ 100 Pieces |
| 653 | 1 3/8" | 142 | 16 |
654
Materials & Finishes Available:
- Electrogalvanized (EG)
- Hot Dipped Galvanized (HD)
- Stainless Steel 304 (SS4)
- Stainless Steel 316 (SS6)
- Aluminum (AL)
| Part No | Channel Depth | Channel Part No | Weight/100 Pcs |
| 654 | 1" | 152 | 7 |
